View larger
Images are for illustrative purposes only. Please refer to data sheet for details

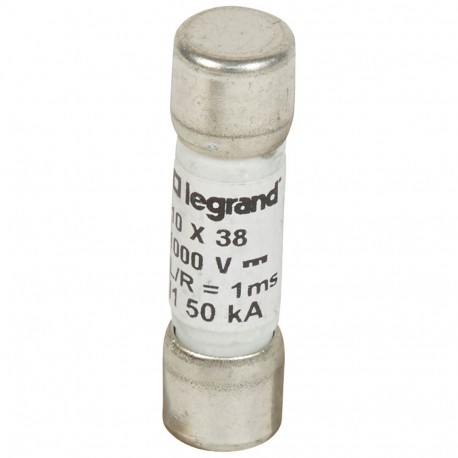

414626 LEGRAND Fuses 1000V 10x38 8A
414626
414626
LEGRAND
10 Pcs.
Fuses 1000V= 10x38 8A
Fuse, cylindrical 10 x 38 mm - for photovoltaic application - 8 To
Cylindrical fuse 10x38mm for photovoltaic application - 8A
Automation > Cylindrical fuse
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Fuse for photovoltaic applications Protection of the dc side of photovoltaic installations - time Constant (L/R): 1 ms - Met the standard IEC 60269-6 Fuse cylindrical 1 000 V= 10 x 38 mm gPV - rated current: 8 ToGeneral characteristics
Protection photovoltaic - surge limiters and circuit breakers| Feature Name | Feature Value |
|---|---|
| Utilization category according to IEC 60269 (EF002572) | gPV (photovoltaic protection) |
| Model (EF000010) | Ceramic fuse |
| Type of fuse status indicator (EF004473) | Other |
| Voltage type (EF000187) | DC |
| Size (EF000088) | 10x38 mm |
| Power loss at rated current (EF012389) | 0.7 W |
| Rated current (EF000227) | 8 A |
