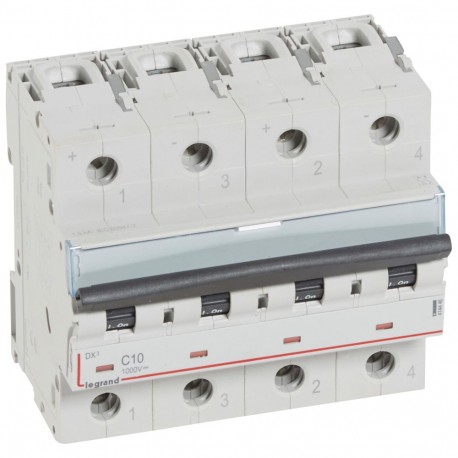

LEGRAND 414446 414446 LEGRAND MAGNETOTERMICO 2P 10A 1000V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414446 LEGRAND MAGNETOTERMICO 2P 10A 1000V

414446

414446

LEGRAND

1 Pcs.

MAGNETOTERMICO 2P 10A 1000V= Automatic switch DX - 4,5 kA - 1000 V= - 2P - 10 - 6 modules Automatic switch DX³ - 4.5kA - 1000V= - 2P - 10A - 6mod

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand magnetic circuit breaker secures specialized electrical circuits against heavy overloads and transient fault currents in industrial setups. These units isolate faulted electrical segments quickly to prevent damage to expensive equipment assets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Connectable conductor cross section solid-core (EF007337): 1.5 mm²
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): DC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 8 kV
  • Number of protected poles (EF005548): 2
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 6
  • Rated insulation voltage Ui (EF001366): 1000 V
  • Connectable conductor cross section multi-wired (EF007343): 1.5 mm²
  • Rated current (EF000227): 10 A
  • Flush-mounted installation (EF007517): Yes

More info

▲

Product features

Circuit breakers for direct current - Magnetic adjusted between 5 to 7 In - Use modules spacers ref. 4 063 07 between 2 devices consecutive circuit Breakers for 1000 V= - Auxiliaries common to the range DX3 - rated current: 10 A - Number of poles protected: 2 - Number of modules: 6

General characteristics

Protection photovoltaic - automatic switches continuous current
