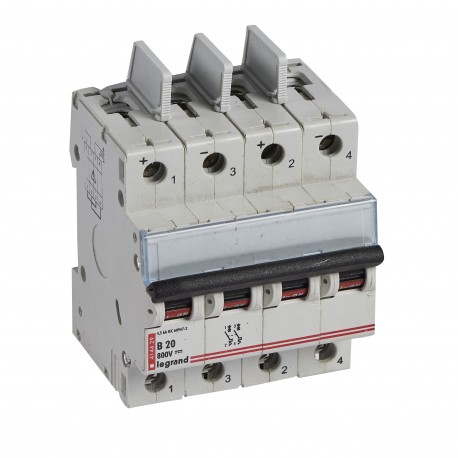

LEGRAND 414429 414429 LEGRAND MAGNETOTERMICO 2P 20A 800V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414429 LEGRAND MAGNETOTERMICO 2P 20A 800V

414429

414429

LEGRAND

1 Pcs.

MAGNETOTERMICO 2P 20A 800V= Automatic switch DX - 4,5 kA - 800 V= - 2P - 20 A - 4 modules Automatic Switch DX³ - 4.5kA - 800V= - 2P - 20A - 4mod

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Protecting electrical distribution networks against overcurrent faults, the Legrand 414429 magnetotermico acts as an automatic circuit breaker for industrial setups. Devices of this category interrupt fault currents to prevent equipment damage and ensure safe system operation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): DC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 8 kV
  • Number of protected poles (EF005548): 2
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 1000 V
  • Rated current (EF000227): 20 A
  • Flush-mounted installation (EF007517): Yes
  • Release characteristic (EF000889): B
  • Rated voltage (EF000228): 800 V

More info

▲

Product features

Circuit breakers for direct current - Magnetic adjusted between 5 to 7 In - Use modules spacers ref. 4 063 07 between 2 devices consecutive circuit Breakers up to 800 V= not auxiliarizables - rated current: 20 - Number of poles protected: 2 - Number of modules: 4

General characteristics

Protection photovoltaic - automatic switches continuous current
