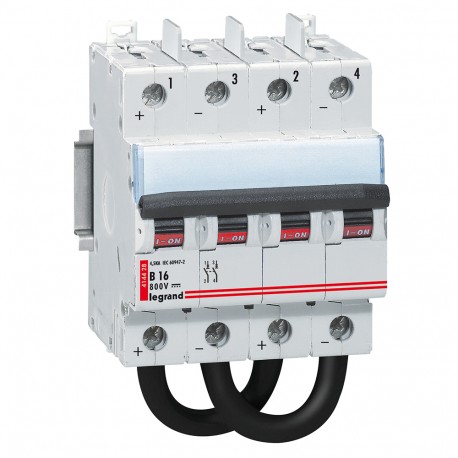

LEGRAND 414428 414428 LEGRAND MAGNETOTERMICO 2P 16A 800V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414428 LEGRAND MAGNETOTERMICO 2P 16A 800V

414428

414428

LEGRAND

1 Pcs.

MAGNETOTERMICO 2P 16A 800V= Automatic switch DX - 4,5 kA - 800 V= - 2P - 16 - 4 modules Automatic switch DX³ - 4.5kA - 800V= - 2P - 16A - 4mod

Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Direct current distribution networks and industrial control systems utilize devices like the 414428 LEGRAND MAGNETOTERMICO 2P 16A 800V to interrupt fault currents and prevent system damage. This magnetic thermal circuit breaker offers reliable circuit isolation during overloads and short circuits in specialized high-voltage applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Explosion-proof (EF004663): No
  • Degree of protection (IP) (EF005474): IP20
  • Concurrently switching neutral conductor (EF005997): No
  • Voltage type (EF000187): DC
  • Additional equipment possible (EF008148): Yes
  • Rated impulse withstand voltage Uimp (EF011980): 8 kV
  • Number of protected poles (EF005548): 2
  • Built-in depth (EF000218): 44 mm
  • Number of poles (total) (EF008618): 2
  • Pollution degree (EF002570): 2
  • Width in number of modular spacings (EF002950): 2
  • Rated insulation voltage Ui (EF001366): 1000 V
  • Rated current (EF000227): 16 A
  • Flush-mounted installation (EF007517): Yes
  • Release characteristic (EF000889): B
  • Rated voltage (EF000228): 800 V

More info

▲

Product features

Circuit breakers for direct current - Magnetic adjusted between 5 to 7 In - Use modules spacers ref. 4 063 07 between 2 devices consecutive circuit Breakers up to 800 V= not auxiliarizables - nominal Intensity: 16 A - Number of poles protected: 2 - Number of modules: 4

General characteristics

Protection photovoltaic - automatic switches continuous current
