View larger
Images are for illustrative purposes only. Please refer to data sheet for details

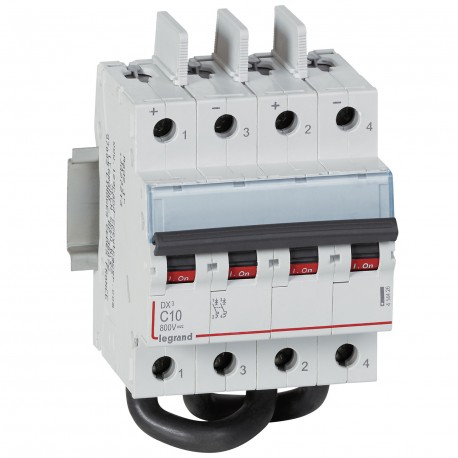

414426 LEGRAND MAGNETOTERMICO 2P 10A 800V
414426
414426
LEGRAND
1 Pcs.
MAGNETOTERMICO 2P 10A 800V=
Automatic switch DX - 4,5 kA - 800 V= -2P - 10 A - 4 modules
Automatic Switch DX³ - 4.5kA - 800V= - 2P - 10A - 4mod
Automation > Miniature circuit breaker (MCB)
INDUSTRIAL CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Circuit breakers for direct current - Magnetic adjusted between 5 to 7 In - Use modules spacers ref. 4 063 07 between 2 devices consecutive circuit Breakers up to 800 V= not auxiliarizables - rated current: 10 A - Number of poles protected: 2 - Number of modules: 4General characteristics
Protection photovoltaic - automatic switches continuous current| Feature Name | Feature Value |
|---|---|
| Explosion-proof (EF004663) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Concurrently switching neutral conductor (EF005997) | No |
| Voltage type (EF000187) | DC |
| Additional equipment possible (EF008148) | Yes |
| Rated impulse withstand voltage Uimp (EF011980) | 8 kV |
| Number of protected poles (EF005548) | 2 |
| Built-in depth (EF000218) | 44 mm |
| Number of poles (total) (EF008618) | 2 |
| Pollution degree (EF002570) | 2 |
| Width in number of modular spacings (EF002950) | 2 |
| Rated insulation voltage Ui (EF001366) | 1000 V |
| Rated current (EF000227) | 10 A |
| Flush-mounted installation (EF007517) | Yes |
| Release characteristic (EF000889) | B |
| Rated voltage (EF000228) | 800 V |
