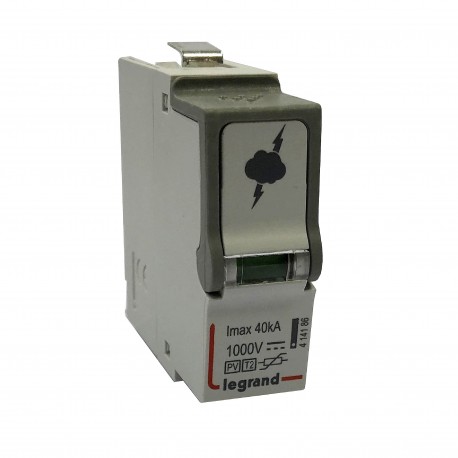

LEGRAND 414186 414186 LEGRAND REPLACEMENT LIM SOBRET REF 414156 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414186 LEGRAND REPLACEMENT LIM SOBRET REF 414156

414186

414186

LEGRAND

1 Pcs.

REPLACEMENT LIM SOBRET REF 414156 Removable replacement cartridge for lightning rod reference 414156

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 414186 replacement limiter modules are designed to maintain surge protection systems by swapping out spent components in direct current applications. These units snap securely onto existing base elements to restore full overvoltage defense.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): No
  • Nominal voltage DC (EF004221): 1000 V
  • Degree of protection (IP) (EF005474): IP20
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 1 modular spacing
  • System configuration other (EF009932): Yes
  • Mounting method (EF000003): On basic element
  • System configuration TT (EF009931): No
  • Max. discharge surge current (8/20) (EF012274): 40 kA
  • Number of conductors (without earthing) (EF001148): 1
  • Voltage protection level (EF003525): 4 kV
  • System configuration IT (EF009927): No
  • System configuration DC (EF009926): Yes
  • System configuration TN-C (EF009929): No
  • System configuration TN (EF009928): No
  • Max. continuous voltage DC (EF004777): 1200 V

More info

▲

Product features

General features


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
