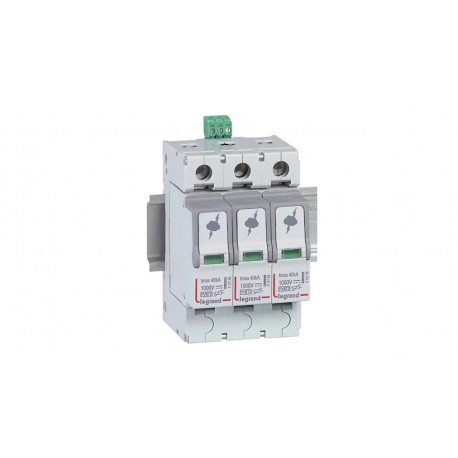

LEGRAND 414156 414156 LEGRAND LIMIT SOBRET FOTOVOLT 1000V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414156 LEGRAND LIMIT SOBRET FOTOVOLT 1000V

414156

414156

LEGRAND

1 Pcs.

LIMIT SOBRET FOTOVOLT 1000V Surge protection device for photovoltaic installations 1000V Type 2- Imax 40kA Type 2 photovoltaic surge arrester - 2P protected - 1000V

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 414156 LEGRAND LIMIT SOBRET FOTOVOLT 1000V provides critical overvoltage defense for photovoltaic power systems and DC installations. These specialized surge protection devices intercept dangerous lightning-induced or operational surges, safely discharging them to protect expensive solar inverters and balance-of-system hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): No
  • Nominal voltage DC (EF004221): 1000 V
  • Degree of protection (IP) (EF005474): IP20
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 3 modular spacing
  • System configuration other (EF009932): Yes
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 2
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): No
  • System configuration TN (EF009928): No
  • Max. continuous voltage DC (EF004777): 1200 V
  • Integrated backup fuse (EF008797): No
  • Nominal discharge surge current (8/20) (EF004214): 40 kA
