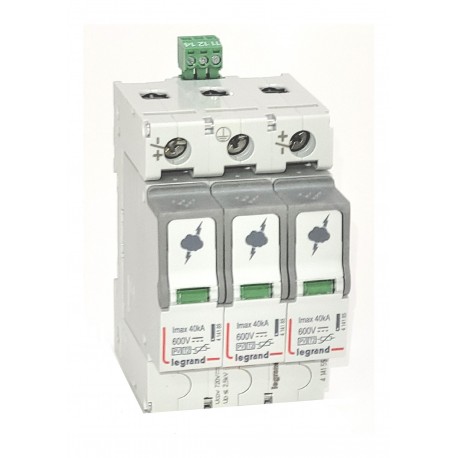

LEGRAND 414155 414155 LEGRAND PARAFOUDRE PV 600V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

414155 LEGRAND PARAFOUDRE PV 600V

414155

414155

LEGRAND

1 Pcs.

PARAFOUDRE PV 600V Type 2 photovoltaic surge arrester - 2 protected poles - 3 modules - Imax 40 kA - 600V= Type 2 photovoltaic surge arrester - 2P protected - 600V

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 414155 LEGRAND PARAFOUDRE PV 600V serves as a specialized photovoltaic surge protection device designed to safeguard DC solar installations against atmospheric overvoltages. These protective devices are commonly integrated into string combiner boxes and inverter inputs to maintain system reliability and prevent high-voltage damage.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): No
  • Nominal voltage DC (EF004221): 600 V
  • Degree of protection (IP) (EF005474): IP20
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 3 modular spacing
  • System configuration other (EF009932): Yes
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 2
  • Voltage protection level (EF003525): 4 kV
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): No
  • System configuration TN (EF009928): No
  • Max. continuous voltage DC (EF004777): 720 V
  • Integrated backup fuse (EF008797): No
