View larger
Images are for illustrative purposes only. Please refer to data sheet for details

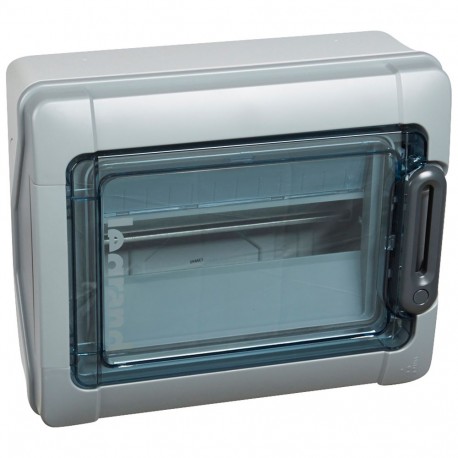

414033 LEGRAND BOX PLEXO3 1X12M FOTOV
414033
414033
LEGRAND
1 Pcs.
BOX PLEXO3 1X12M FOTOV
Plexo³ box to be equipped for photovoltaic installations 1X12 modules
Plexo³ box to be equipped for 1X12mod photovoltaic installations
Automation > Small distribution board
DIN MODULAR BOXES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
General features
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 282 mm |
| Type of door (EF004464) | EV000426 |
| Inner depth (EF001131) | 89 mm |
| Transparent cover/door (EF006244) | Yes |
| Type of closure (EF004462) | Cylinder |
| Degree of protection (IP) (EF005474) | IP65 |
| DIN-rail (EF001134) | Yes |
| Housing material (EF001596) | Plastic |
| With lock (EF006306) | Yes |
| Mounting method (EF000003) | Surface mounted |
| Number of rows (EF000266) | 1 |
| Cover model (EF009212) | Closed |
| Signal passing door (EF015941) | Yes |
| RAL-number (EF000116) | 7046 |
| Built-in depth (EF000218) | 147 mm |
| Type of covering (EF000339) | Door |
| With mounting plate (EF000118) | No |
| Extension possible (EF001088) | Yes |
| Width in number of modular spacings (EF002950) | 12 |
| Built-in height (EF000332) | 278 mm |
| EMC-version (EF001062) | No |
| Neutral terminal block (EF015777) | No |
| Earthing terminal block (EF015776) | No |
| Depth (EF000049) | 151 mm |
| Colour (EF000007) | Grey |
| Width (EF000008) | 340 mm |
| Built-in width (EF000846) | 336 mm |
