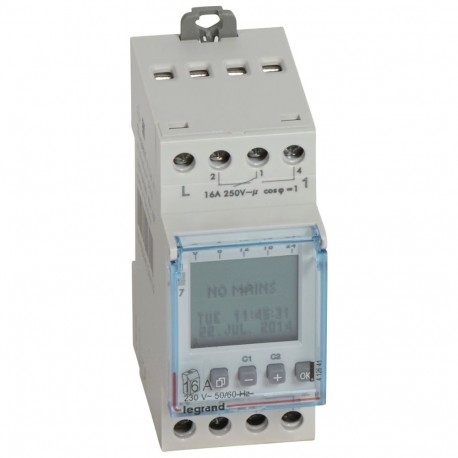

412641 LEGRAND INTER-TIME MULTI-PROGRAM
412641
412641
LEGRAND
1 Pcs.
Automation > Digital time switch for distribution board
TIME SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing multi-program schedule management, this Legrand inter-time multi-program device automates electrical loads based on precise time parameters. Facility managers use programmable time switches to optimize energy consumption in lighting, heating, and ventilation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 83 mm
- Degree of protection (IP) (EF005474): IP20
- Supply voltage (EF004127): 230 V
- Radio-controlled (DCF77) (EF003850): No
- Autonomy in years (EF004720): 5
- Frequency supply voltage (EF004687): 50 Hz
- Mounting method (EF000003): DIN rail
- Accuracy per day (EF006325): 0.1 s
- External push button input (EF007754): No
- External programming (EF003846): Yes
- Potential free switch contact (EF003626): Yes
- Automatic switching summer/winter time (EF002977): Yes
- Quartz controlled (EF002974): Yes
- Number of channels (EF000259): 2
- Suitable for manual operation (EF002978): Yes
- Switching preselection (EF002979): Yes
More info
▲| Mounting method | DIN rail |
|---|---|
| Number of channels | 2 |
| Supply voltage | 230-230 V |
| Voltage type (supply voltage) | AC |
| Frequency supply voltage | 50-60 Hz |
| Autonomy in years | 5 |
| Accuracy per day | 0.1 s |
| Text guidance in display | Yes |
| External programming | Yes |
| With memory card | No |
| 60 min program | No |
| 24 h program | Yes |
| Weekly program | Yes |
| Annual program | Yes |
| Holiday program | Yes |
| Impulse program | No |
| Cycle program | Yes |
| Astro program | No |
| Random program | Yes |
| Hour meter | Yes |
| Mains synchronous | Yes |
| Quartz controlled | Yes |
| Radio-controlled | No |
| Radio-controlled (DCF77) | No |
| GPS (global positioning system) | No |
| Contact type | Change-over contact (NO/NC) |
| Shortest switching time channel 1 | 0.01666 s |
| Number of memory locations | 56 |
| Automatic switching summer/winter time | Yes |
| Suitable for manual operation | Yes |
| External push button input | No |
|---|---|
| Switching preselection | Yes |
| Nominal switching current at 250 V AC | 16 A |
| Potential free switch contact | Yes |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Width | 35.6 mm |
| Height | 83 mm |
| Depth | 60 mm |
| Operating / setting temperature | -20-55 °C |
| Storage temperature | -20-60 °C |
| Electric supplying direction | Other |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Connection type | Screwed terminal , Cable |
| Terminals capacity | 1.5-4 mm² |
| Label space/information surface | No |
| Contains Batteries and/or Accumulator | Yes |
| IEC code (Pack1) | CR2477 |
| Battery ou Accumulator (Pack1) | Battery (not rechargeable) |
| Element Composition (Pack1) | Lithium (battery or accumulator) |
| Number of Pack 1 | 1 |
| Number of Single Element (Pack1) | 1 |
| Single Element weight (Pack1) | 11 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | P : Portable (Standard format) |
| Connected object | No |
| Application store for download | Not applicable |
