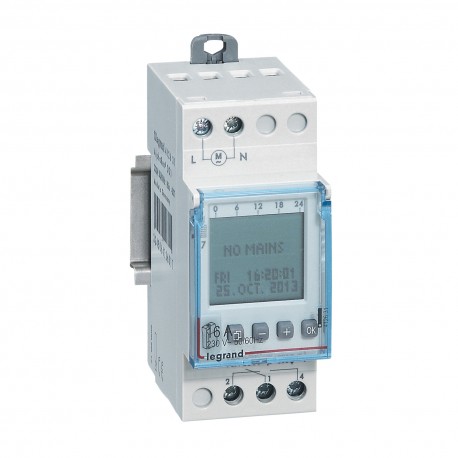

412631 LEGRAND INTER-TIME MULTI-PROGRAM
412631
412631
LEGRAND
1 Pcs.
Automation > Digital time switch for distribution board
TIME SWITCHES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part 412631 is a multi-program inter-time switch designed to manage complex time-based switching tasks on standard DIN rails. Multi-program time controllers are widely integrated into electrical distribution boards to automate lighting, ventilation, and heating circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 83 mm
- Degree of protection (IP) (EF005474): IP20
- Supply voltage (EF004127): 230 V
- Radio-controlled (DCF77) (EF003850): No
- Autonomy in years (EF004720): 5
- Frequency supply voltage (EF004687): 50 Hz
- Mounting method (EF000003): DIN rail
- Accuracy per day (EF006325): 0.1 s
- External push button input (EF007754): No
- External programming (EF003846): Yes
- Potential free switch contact (EF003626): Yes
- Automatic switching summer/winter time (EF002977): Yes
- Quartz controlled (EF002974): Yes
- Number of channels (EF000259): 1
- Suitable for manual operation (EF002978): Yes
- Switching preselection (EF002979): Yes
More info
▲| Mounting method | DIN rail |
|---|---|
| Number of channels | 1 |
| Supply voltage | 230-230 V |
| Voltage type (supply voltage) | AC |
| Frequency supply voltage | 50-60 Hz |
| Autonomy in years | 5 |
| Accuracy per day | 0.1 s |
| Text guidance in display | Yes |
| External programming | Yes |
| With memory card | No |
| 60 min program | No |
| 24 h program | Yes |
| Weekly program | Yes |
| Annual program | No |
| Holiday program | Yes |
| Impulse program | No |
| Cycle program | Yes |
| Astro program | No |
| Random program | Yes |
| Hour meter | Yes |
| Mains synchronous | Yes |
| Quartz controlled | Yes |
| Radio-controlled | No |
| Radio-controlled (DCF77) | No |
| GPS (global positioning system) | No |
| Contact type | Change-over contact (NO/NC) |
| Shortest switching time channel 1 | 0.01666 s |
| Number of memory locations | 56 |
| Automatic switching summer/winter time | Yes |
| Suitable for manual operation | Yes |
| External push button input | No |
|---|---|
| Switching preselection | Yes |
| Nominal switching current at 250 V AC | 16 A |
| Potential free switch contact | Yes |
| Degree of protection (IP) | IP20 |
| Width in number of modular spacings | 2 |
| Width | 35.6 mm |
| Height | 83 mm |
| Depth | 67 mm |
| Operating / setting temperature | -20-55 °C |
| Storage temperature | -20-60 °C |
| Electric supplying direction | By the top |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Connection type | Screwed terminal , Cable |
| Terminals capacity | 1.5-4 mm² |
| Label space/information surface | No |
| Contains Batteries and/or Accumulator | Yes |
| IEC code (Pack1) | CR2477 |
| Battery ou Accumulator (Pack1) | Battery (not rechargeable) |
| Element Composition (Pack1) | Lithium (battery or accumulator) |
| Number of Pack 1 | 1 |
| Number of Single Element (Pack1) | 1 |
| Single Element weight (Pack1) | 11 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | P : Portable (Standard format) |
| Connected object | No |
| Application store for download | Not applicable |
