View larger
Images are for illustrative purposes only. Please refer to data sheet for details

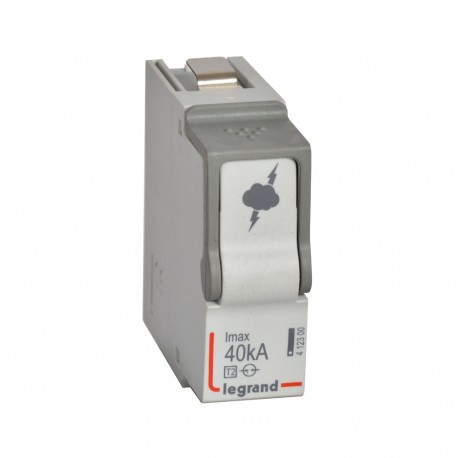

412300 LEGRAND MODULE T2 40KA N-PE
412300
412300
LEGRAND
1 Pcs.
MODULE T2 40KA N-PE
Plug-in replacement modules for SPD - T2 - 40 kA/pole - N-PE modules
Replacement cartridges for T2/40kA surge limiters (N-PE cartridge)
Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.211
- Weight (g)51.00
Product characteristics
Replacement plug-in modules- N-PE module for SPDs T2 - 40 kA Cat.Nos 4 122 44/45/46/47
General characteristics
Class II (T2) low voltage SPDs- Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
- Recommended for distribution boards
| Feature Name | Feature Value |
|---|---|
| System configuration TN-C-S (EF009933) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Nominal voltage AC (EF004220) | 230 V |
| System configuration TN-S (EF009930) | No |
| Construction size (EF002566) | 1 modular spacing |
| System configuration other (EF009932) | Yes |
| System configuration TT (EF009931) | No |
| Signalling at the device (EF004241) | Optic |
| System configuration IT (EF009927) | No |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN (EF009928) | Yes |
| Max. continuous voltage AC (EF004198) | 320 V |
| Voltage protection level N-PE (EF008796) | 1.5 kV |
| Integrated backup fuse (EF008797) | No |
| Voltage protection level L-N (EF004236) | 1.7 kV |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | No |
