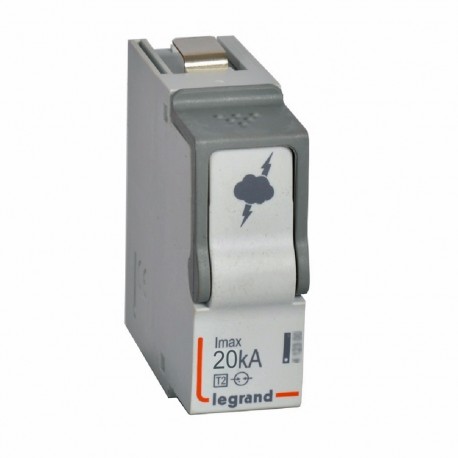

LEGRAND 412298 412298 LEGRAND MODULE T2 20KA N-PE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412298 LEGRAND MODULE T2 20KA N-PE

412298

412298

LEGRAND

1 Pcs.

MODULE T2 20KA N-PE Plug-in replacement modules for SPD - T2 - 20 kA/pole - N-PE modules Replacement cartridges for T2/20kA surge limiters (N-PE cartridge)

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand module t2 20ka n-pe, part number 412298, operates as a protective plug-in module within electrical distribution architectures to absorb high-energy voltage transients. Such modules are routinely utilized alongside main surge protectors in electrical switchgear to maintain network integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 1 modular spacing
  • System configuration other (EF009932): Yes
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 320 V
  • Voltage protection level N-PE (EF008796): 1.5 kV
  • Integrated backup fuse (EF008797): No
  • Voltage protection level L-N (EF004236): 1.2 kV
  • Nominal discharge surge current (8/20) (EF004214): 5 kA

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.211
  • Weight (g)52.00
Product characteristics
Replacement plug-in modules
  • N-PE module for SPDs T2 - 20 kA Cat.Nos 4 122 24/25/26/27
General characteristics
Class II (T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for distribution boards
