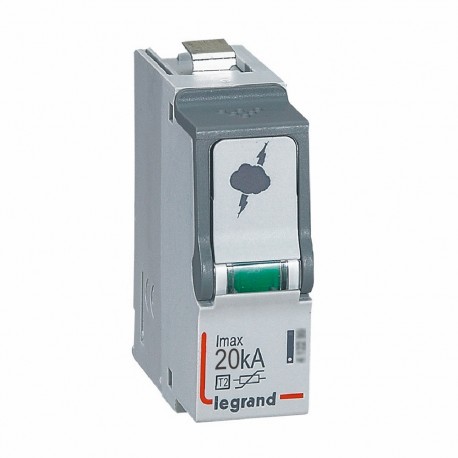

LEGRAND 412297 412297 LEGRAND MODULE T2 20KA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412297 LEGRAND MODULE T2 20KA

412297

412297

LEGRAND

1 Pcs.

MODULE T2 20KA Plug-in replacement modules for SPD - T2 - 20 kA/pole Replacement cartridges for T2/20kA surge limiters

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412297 module t2 20ka provides reliable secondary overvoltage protection for electrical panels and machinery. Surge suppression modules are designed to divert transient electrical spikes away from critical automation components.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 1 modular spacing
  • System configuration other (EF009932): Yes
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 320 V
  • Voltage protection level N-PE (EF008796): 1.5 kV
  • Integrated backup fuse (EF008797): No
  • Voltage protection level L-N (EF004236): 1.2 kV
  • Nominal discharge surge current (8/20) (EF004214): 5 kA

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.211
  • Weight (g)60.00
Product characteristics
Replacement plug-in modules
  • For SPDs T2 - 20 kA Cat.Nos 4 122 20/21/23/24/25/26/27/60/61/62/63
General characteristics
Class II (T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for distribution boards
