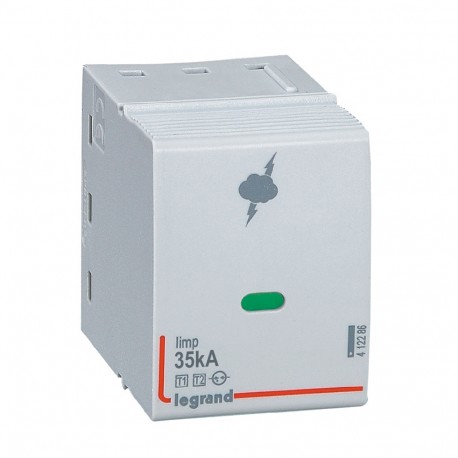

LEGRAND 412286 412286 LEGRAND MODULE T1 35KA 1P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412286 LEGRAND MODULE T1 35KA 1P

412286

412286

LEGRAND

1 Pcs.

MODULE T1 35KA 1P Plug-in replacement modules for SPD - T1+T2 - 35 kA/pole Replacement cartridges for T1/35kA surge limiters

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 412286 is a Type 1 modular surge protection module engineered to handle high-energy electrical impulses at the origin of an installation. These heavy-duty components are deployed in industrial electrical boards to defend downstream networks against severe lightning-related transients.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 400 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 2 modular spacing
  • System configuration other (EF009932): Yes
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • Voltage protection level (EF003525): 2.5 kV
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 440 V
  • Integrated backup fuse (EF008797): No
  • Nominal discharge surge current (8/20) (EF004214): 25 kA
  • Category type 2 (EF004230): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)270.00
Product characteristics
Replacement plug-in modules
  • For SPDs T1+T2 - 35 kA Cat.No 4 122 80
General characteristics
Class I + II (T1+T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz).
  • SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for main distribution boards
  • Class I+II (T1+T2) : SPDs tested and specified according to both T1 and T2 test classes
