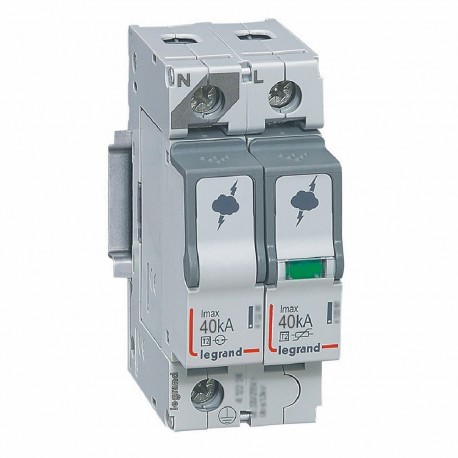

LEGRAND 412244 412244 LEGRAND LIMIT SOBRET T2 40KA 1P+N View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412244 LEGRAND LIMIT SOBRET T2 40KA 1P+N

412244

412244

LEGRAND

1 Pcs.

LIMIT SOBRET T2 40KA 1P+N SPD - T2 - Imax 40 kA/pole - 1P+N - neutral on left-hand side T2 surge limiter - Imax 40kA/pole - 1P+N - 320VA - 2mod

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412244 type 2 surge protective device is built to intercept transient electrical surges and protect downstream commercial installations from damage. Electrical panels depend on these modular protective units to clamp high-voltage spikes effectively.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 2 modular spacing
  • System configuration other (EF009932): No
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): Yes
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 2
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 320 V
  • Voltage protection level N-PE (EF008796): 1.5 kV
  • Integrated backup fuse (EF008797): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.369
  • Weight (g)195.00
Product characteristics
T2 SPDs
  • SPDs with plug-in modules and status indicators:
    • Green: SPD operational
    • Orange: plug-in modules to be replaced
T2 - Imax 40 kA/pole
  • SPDs recommended for power installations
  • Up: 1.7 kV - In: 20 kA/pole - Uc: 320 V~
  • Earthing systems : TT, TNC, TNS
  • Recommended MCB: DX³ 25 A - C curve
  • 1P+N and 3P+N: L-N and N-PE protection modes (common and differential modes), the N pole being protected by encapsulated spark gaps. Also called 1+1 and 3+1
  • Number of poles : 1P+N
  • Neutral position : Left
  • Remote status monitoring (FS contact) : No
  • Number of modules : 2
General characteristics
Class II (T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for distribution boards
