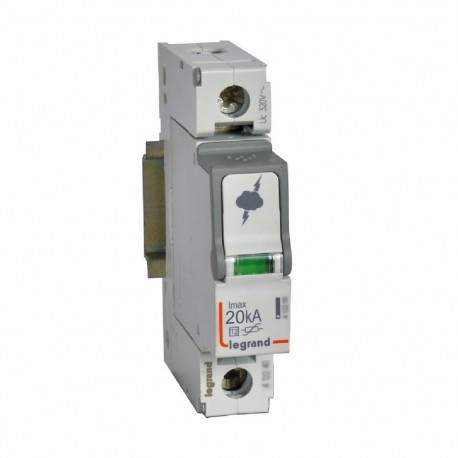

LEGRAND 412220 412220 LEGRAND LIMIT SOBRET T2 20KA 1P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412220 LEGRAND LIMIT SOBRET T2 20KA 1P

412220

412220

LEGRAND

1 Pcs.

LIMIT SOBRET T2 20KA 1P SPD - T2 - Imax 20 kA/pole - 1P T2 surge limiter - Imax 20kA/pole - 1P - 320VA - 1mod

Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412220 limit sobret t2 20ka 1p is a modular surge protection device engineered to shield electrical equipment against indirect lightning strikes and switching overvoltages. Units of this type are deployed within main distribution boards to maintain system integrity.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • System configuration TN-C-S (EF009933): Yes
  • Degree of protection (IP) (EF005474): IP20
  • Nominal voltage AC (EF004220): 230 V
  • System configuration TN-S (EF009930): No
  • Construction size (EF002566): 1 modular spacing
  • System configuration other (EF009932): Yes
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • System configuration TT (EF009931): No
  • Signalling at the device (EF004241): Optic
  • Number of conductors (without earthing) (EF001148): 1
  • Voltage protection level (EF003525): 1.2 kV
  • System configuration IT (EF009927): No
  • System configuration TN-C (EF009929): Yes
  • System configuration TN (EF009928): Yes
  • Max. continuous voltage AC (EF004198): 320 V
  • Integrated backup fuse (EF008797): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.211
  • Weight (g)103.00
Product characteristics
T2 SPDs
  • SPDs with plug-in modules and status indicators:
    • Green: SPD operational
    • Orange: plug-in modules to be replaced
T2 - Imax 20 kA/pole
  • SPDs recommended for small installations
  • Up: 1.2 kV - In: 5 kA/pole - Uc: 320 V~
  • Earthing systems : TT, TNC, TNS
  • Recommended MCB: DX³ 20 A - C curve
  • Number of poles : 1P
  • Remote status monitoring (FS contact) : No
  • Number of modules : 1
General characteristics
Class II (T2) low voltage SPDs
  • Protection against transient overvoltagess for 230/400 V~ power networks (50/60 Hz). SPDs compliant with EN/IEC 61643-11 standards
  • Recommended for distribution boards
