View larger
Images are for illustrative purposes only. Please refer to data sheet for details

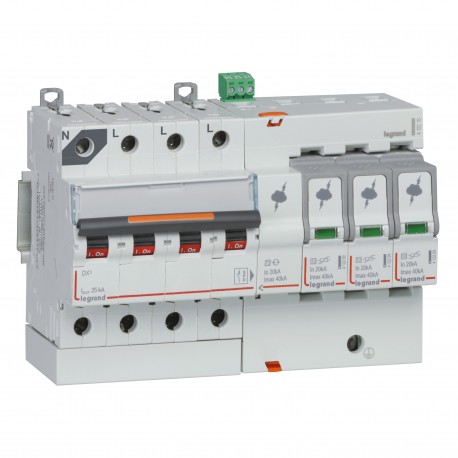

412215 LEGRAND LIM SOB+INT T2 40KA 3P+NG +SD
412215
412215
LEGRAND
1 Pcs.
LIM SOB+INT T2 40KA 3P+NG +SD
SPD with ICC protection 25KA T2 IMAX 40KA 3P+N with left fault signaling
SPD with ICC Protection 25KA T2 IMAX 40KA 3P+N
Automation > Surge protection device for power supply systems
MOTOR CIRCUIT BREAKERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
General features
| Feature Name | Feature Value |
|---|---|
| System configuration TN-C-S (EF009933) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Nominal voltage AC (EF004220) | 400 V |
| System configuration TN-S (EF009930) | Yes |
| Construction size (EF002566) | 8 modular spacing |
| System configuration other (EF009932) | No |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| System configuration TT (EF009931) | Yes |
| Signalling at the device (EF004241) | Optic |
| Max. discharge surge current (8/20) (EF012274) | 20 kA |
| Number of conductors (without earthing) (EF001148) | 4 |
| Voltage protection level (EF003525) | 2.5 kV |
| System configuration IT (EF009927) | No |
| System configuration DC (EF009926) | No |
| System configuration TN-C (EF009929) | Yes |
| System configuration TN (EF009928) | Yes |
| Max. continuous voltage AC (EF004198) | 320 V |
| Voltage protection level N-PE (EF008796) | 1.5 kV |
| Integrated backup fuse (EF008797) | Yes |
| Voltage protection level L-N (EF004236) | 2.5 kV |
| Nominal discharge surge current (8/20) (EF004214) | 20 kA |
| Category type 2 (EF004230) | Yes |
| With remote signalling contact (EF000422) | Yes |
| Max. conductor cross section solid (solid, stranded) (EF008827) | 35 mm² |
| Max. conductor cross section flexible (fine-strand) (EF008828) | 25 mm² |
