View larger
Images are for illustrative purposes only. Please refer to data sheet for details

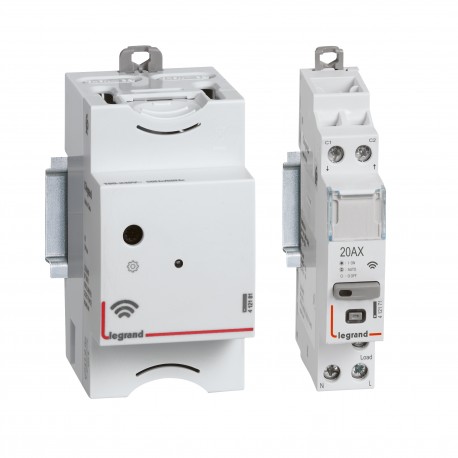

412191 LEGRAND PACK Smart contactor + Radio gateway
412191
412191
LEGRAND
1 Pcs.
PACK Smart contactor + Radio gateway
Connected starter pack CX³ with Netatmo for connected installation : gateway module + connected contactor
Connected starter pack for electrical panel
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)1.607
- Weight (g)234.00
Product characteristics
CX³ with Netatmo connected starter pack- Can be used to start a connected installation
- For installation in the electrical panel
- Connects the connected modules to the house Wi-Fi network
- Allows insertion of a supply busbar
- Contents:
- 1 Gateway Module Cat.No 4 121 81, 100 - 240 VA - 50/60 Hz. Consumption: 2 W maximum. Width: 2.5 x 17.5 mm modules
- 1 connected contactor Cat.No 4 121 71, multifunction, silent (< 10 dB), 20 A, 100 - 240 VA - 50/60 Hz. Width: 1 x 17.5 mm module. Connection via screw terminals
General characteristics
Smart electrical panel - connected starter packs- Allows the user to control an installation remotely using a smartphone via the app Home + Control from Legrand and/or voice via a voice assistant
- For any connected installation, you need to order either an EMDX³ with Netatmo Gateway Module, or a starter pack for connected installations including an interface (CX3 with Netatmo connected starter pack or available in the connected wiring accessory ranges: Arteor/Céliane/Dooxie/Mosaic/Valena with Netatmo)
- The installation can be supplemented by other products for smart electrical panel oravailable in the "with Netatmo" connected wiring accessory ranges
- Products available from an Authorised Dealer
- 2.4 GHz Wi-Fi connection required
| Feature Name | Feature Value |
|---|---|
| Rated operation current (EF007679) | 20 A |
| Degree of protection (IP) (EF005474) | IP3X |
| Width in number of modular spacings (EF002950) | 3.5 |
| Additional equipment possible (EF008148) | No |
| Number of contacts as normally open contact (EF008256) | 1 |
| Slider for hand switch (EF005240) | No |
| Voltage type (operating voltage) (EF005294) | AC |
| Rated operating voltage (EF001435) | 240 V |
