LEGRAND 412171 412171 LEGRAND Smart Contactor View larger
Images are for illustrative purposes only. Please refer to data sheet for details

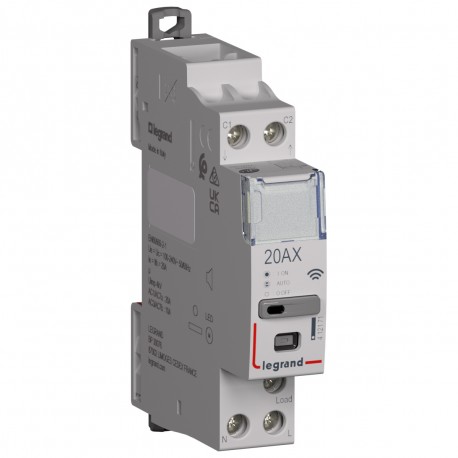

412171 LEGRAND Smart Contactor

412171

412171

LEGRAND

1 Pcs.

Smart Contactor CX³ with Netatmo 20A 230V AC Connected Contactor Connected contactor for electrical panel

Automation > Installation contactor for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A smart contactor, represented by the Legrand part number 412171, serves as an advanced remote-controlled switching device designed for automated energy management, lighting control, and building automation circuits. These modular units facilitate efficient electrical load switching within modern distribution boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operation current (EF007679): 20 A
  • Degree of protection (IP) (EF005474): IP3X
  • Width in number of modular spacings (EF002950): 1
  • Additional equipment possible (EF008148): No
  • Number of contacts as normally open contact (EF008256): 1
  • Slider for hand switch (EF005240): No
  • Voltage type (operating voltage) (EF005294): AC
  • Rated operating voltage (EF001435): 240 V

More info

▲
Rated operating voltage240-240 V
Rated operation current20 A
Voltage type (operating voltage)AC
Number of contacts as normally open contact1
Slider for hand switchNo
Width in number of modular spacings1
Additional equipment possibleNo
Degree of protection (IP)IP3X
Width17.8 mm
Height95.9 mm
Depth70.1 mm
degree of impact strength (IK)IK04
Operating / setting temperature-5-45 °C
Storage temperature-40-70 °C
Frequency50-50 Hz
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
Terminals capacity0.75-6 mm²
Connection typeCable
Label space/information surfaceYes
Mounting methodDIN rail
