View larger
Images are for illustrative purposes only. Please refer to data sheet for details

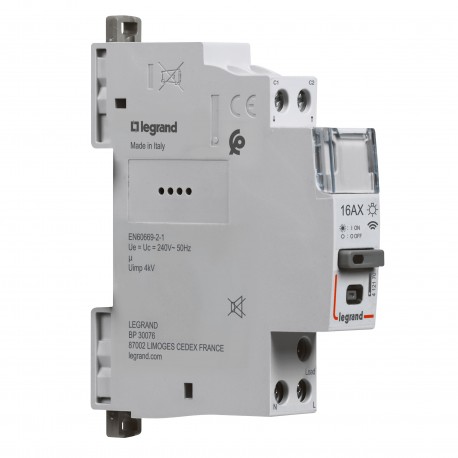

412170 LEGRAND CONNECTED TELESWITCH
412170
412170
LEGRAND
1 Pcs.
CONNECTED TELESWITCH
CX³ with Netatmo Single Pole 16A 230V AC Connected Latching Relay
Connected switch for electrical panel
Automation > Latching relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Function | Electronic switch |
|---|---|
| Mounting method | DIN rail |
| Width in number of modular spacings | 1 |
| Built-in depth | 44 mm |
| Number of contacts as normally open contact | 1 |
| Rated switch current | 16 A |
| Supply voltage | 240-240 V |
| Voltage type (supply voltage) | AC |
| Max. incandescent lamp load | 3840 W |
| Max. load fluorescent lamp | 3000 VA |
| Max. switching current (cos phi = 0.6) | 16 A |
| Suitable for manual operation | Yes |
| Width | 17.8 mm |
| Height | 95.9 mm |
|---|---|
| Depth | 70.1 mm |
| degree of impact strength (IK) | IK04 |
| Degree of protection (IP) | IP3X |
| Operating / setting temperature | -5-45 °C |
| Storage temperature | -40-70 °C |
| Electric supplying direction | Not applicable |
| Terminal marking indication | Yes |
| Stress test conformity (1000V) | Yes |
| Halogen free | Yes |
| Connection type | Screwed terminal , Cable |
| Terminals capacity | 0.75-6 mm² |
| Label space/information surface | Yes |
| Feature Name | Feature Value |
|---|---|
| Max. load fluorescent lamp (EF004971) | 3000 VA |
| Function (EF000030) | Electronic switch |
| Voltage type (supply voltage) (EF002991) | AC |
| Max. switching current (cos phi = 0.6) (EF004920) | 16 A |
| Width in number of modular spacings (EF002950) | 1 |
| Max. incandescent lamp load (EF004952) | 3840 W |
| Supply voltage (EF004127) | 240 V |
| Mounting method (EF000003) | DIN rail |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated switch current (EF006706) | 16 A |
| Built-in depth (EF000218) | 44 mm |
| Suitable for manual operation (EF002978) | Yes |
