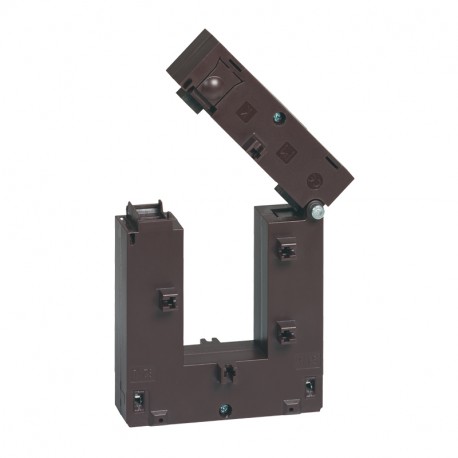

LEGRAND 412169 412169 LEGRAND TRFO INT MONO OPEN 4000/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412169 LEGRAND TRFO INT MONO OPEN 4000/5A

412169

412169

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 4000/5A Single phase split core CT - for 80 x 160 mm bar - transf ratio 4000/5 Open Core Current Transformer 4000/5 - 20VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Legrand, the open-type single-phase current transformer scales massive electrical currents for compatibility with monitoring panels and protective instrumentation. Heavy-duty converters provide essential galvanic isolation and signal reduction in massive power distribution hubs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current: 4000 A
  • Secondary connection: Screw connection
  • Model: Single-phase current converter
  • Calibrated: Yes
  • Accuracy class: 0.5
  • With copper rail: No
  • Rated secondary apparent power: 20 VA
  • With contact protection: Yes
  • Rated secondary current: 5 A
  • Power consumption: 20 W
  • Number of primary inputs: 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.795
  • Weight (g)3 268.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 80 x 160 mm bar
  • Transformation ratio : 4000/5
  • Output : 20 VA
General characteristics
Current transformers (CT)
