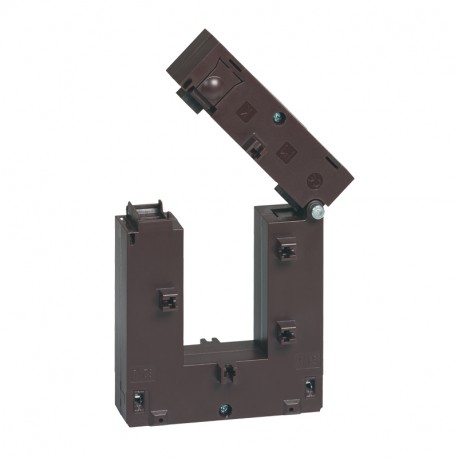

LEGRAND 412168 412168 LEGRAND TRFO INT MONO OPEN 3000/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412168 LEGRAND TRFO INT MONO OPEN 3000/5A

412168

412168

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 3000/5A Single phase split core CT - for 80 x 160 mm bar - transf ratio 3000/5 Open Core Current Transformer 3000/5 - 20VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand single-phase current transformer (part number 412168) delivers reliable step-down conversion of high primary currents for electrical control panels, meters, and protective instrumentation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 3000 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 20 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 20 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.951
  • Weight (g)2 820.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 80 x 160 mm bar
  • Transformation ratio : 3000/5
  • Output : 20 VA
General characteristics
Current transformers (CT)
