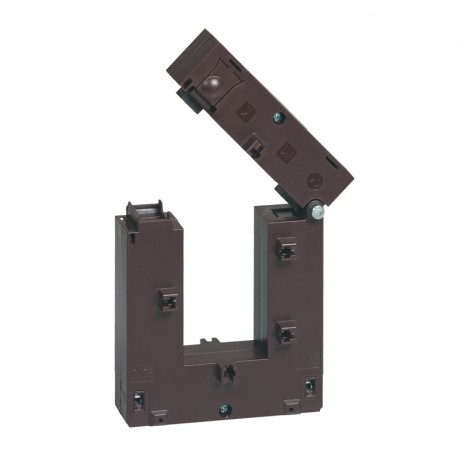

LEGRAND 412167 412167 LEGRAND TRFO INT MONO OPEN 2500/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412167 LEGRAND TRFO INT MONO OPEN 2500/5A

412167

412167

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 2500/5A Single phase split core CT - for 80 x 160 mm bar - transf ratio 2500/5 Open Core Current Transformer 2500/5 - 15VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412167 is a single-phase current converter applied in large-scale electrical distribution systems to safely reduce high primary currents for metering networks. These units provide necessary isolation and proportional output signals for instrumentation connected downstream in heavy electrical switchgear.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 2500 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 15 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 15 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)7.795
  • Weight (g)2 360.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 80 x 160 mm bar
  • Transformation ratio : 2500/5
  • Output : 15 VA
General characteristics
Current transformers (CT)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
