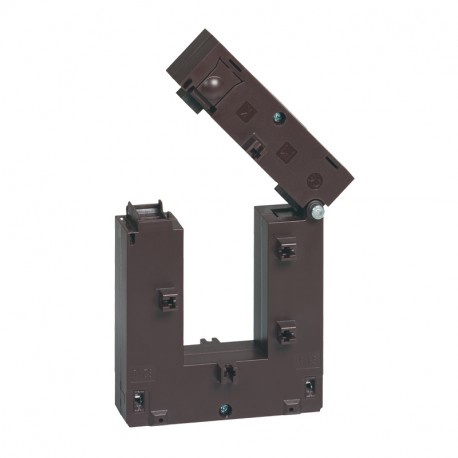

LEGRAND 412165 412165 LEGRAND TRFO INT MONO OPEN 1500/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412165 LEGRAND TRFO INT MONO OPEN 1500/5A

412165

412165

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 1500/5A Single phase split core CT - for 80 x 120 mm bar - transf ratio 1500/5 Open Core Current Transformer 1500/5 - 8VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand single-phase current converter part number 412165 is built to scale high-amperage electrical inputs down to standard secondary values for monitoring and protection devices. Industrial distribution boards rely on such components to ensure safe metering operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 1500 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 8 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 8 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.356
  • Weight (g)1 502.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 80 x 120 mm bar
  • Transformation ratio : 1500/5
  • Output : 8 VA
General characteristics
Current transformers (CT)
