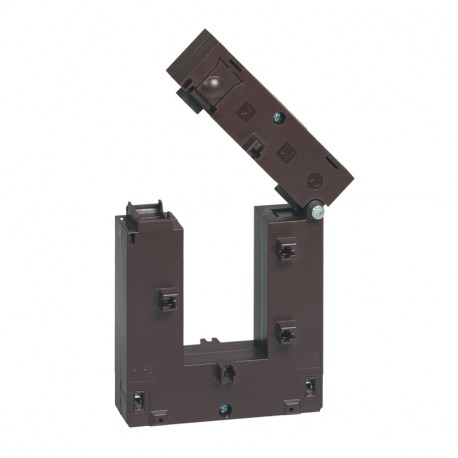

LEGRAND 412164 412164 LEGRAND TRFO INT MONO OPEN 1000/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412164 LEGRAND TRFO INT MONO OPEN 1000/5A

412164

412164

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 1000/5A Single phase split core CT - for 80 x 120 mm bar - transf ratio 1000/5 Open Core Current Transformer 1000/5 - 5VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412164 is a single-phase current converter built to monitor electrical loads by stepping down primary current values for compatible measurement devices and safety relays. Panel builders rely on such components to integrate current sensing into electrical distribution assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 1000 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 5 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 5 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.356
  • Weight (g)1 414.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 80 x 120 mm bar
  • Transformation ratio : 1000/5
  • Output : 5 VA
General characteristics
Current transformers (CT)
