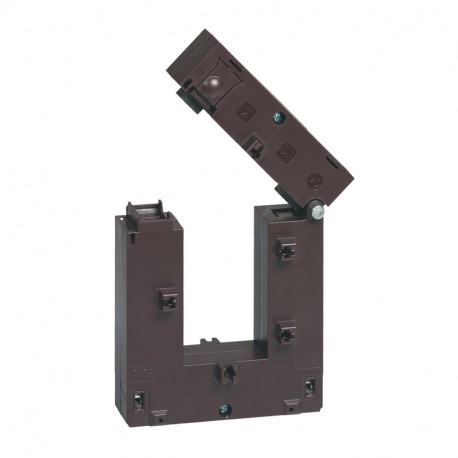

LEGRAND 412163 412163 LEGRAND TRFO INT MONO OPEN 750/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412163 LEGRAND TRFO INT MONO OPEN 750/5A

412163

412163

LEGRAND

1 Pcs.

TRFO INT MONO OPEN 750/5A Single phase split core CT - for 50 x 80 mm bar - transf ratio 800/5 Open Core Current Transformer 800/5 - 3VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Legrand 412163 single-phase current converter reliably steps down primary currents to manageable secondary levels required by measurement and protective equipment in electrical systems. Industrial installations depend on these devices for safe and accurate load monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 750 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 3 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 3 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.561
  • Weight (g)1 040.00
Product characteristics
Single-phase split-core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • For fixing directly on bars
  • Secondary connected by terminals or lugs
  • Precision class: 0,5 %
For 50 x 80 mm bar
  • Transformation ratio : 750/5
  • Output : 3 VA
General characteristics
Current transformers (CT)
