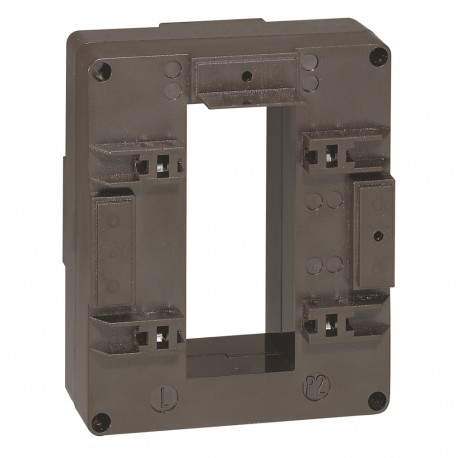

LEGRAND 412151 412151 LEGRAND TRANSF INTENSITY MONO 2000/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412151 LEGRAND TRANSF INTENSITY MONO 2000/5A

412151

412151

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 2000/5A Single phase current transformer (CT) for 127 x 54 mm bar - transformation ratio 2000/5 Closed Core Current Transformer 2000/5 - 25VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

412151 Legrand TRANSF INTENSITY MONO 2000/5A functions as a single-phase current converter designed to monitor heavy electrical loads within industrial switchboards and control cabinets. By stepping down massive currents, this component enables safe connection to panel meters, protective relays, and measurement instrumentation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current: 2000 A
  • Secondary connection: Screw connection
  • Model: Single-phase current converter
  • Calibrated: Yes
  • Overcurrent limiting factor: FS 5
  • Accuracy class: 0.5
  • With copper rail: No
  • Rated secondary apparent power: 25 VA
  • With contact protection: Yes
  • Rated secondary current: 5 A
  • Power consumption: 25 W
  • Number of primary inputs: 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.21
  • Weight (g)903.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 127 x 54 mm bar
  • Transformation ratio : 2000/5
  • Output : 25 VA
General characteristics
Current transformers (CT)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
