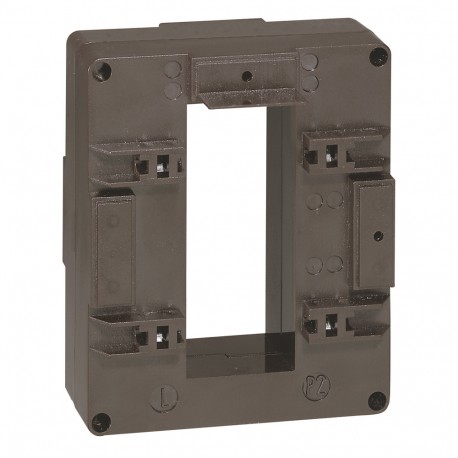

LEGRAND 412150 412150 LEGRAND TRANSF INTENSITY MONO 1600/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412150 LEGRAND TRANSF INTENSITY MONO 1600/5A

412150

412150

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 1600/5A Single phase current transformer (CT) for 127 x 54 mm bar - transformation ratio 1600/5 Closed Core Current Transformer 1600/5 - 20VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This single-phase current converter by Legrand, designated as part number 412150, scales large primary currents to proportional secondary values designed for measurement and protection equipment. Technicians use these components in electrical switchboards to safely monitor heavy electrical loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 1600 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 20 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 20 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.21
  • Weight (g)831.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 127 x 54 mm bar
  • Transformation ratio : 1600/5
  • Output : 20 VA
General characteristics
Current transformers (CT)
