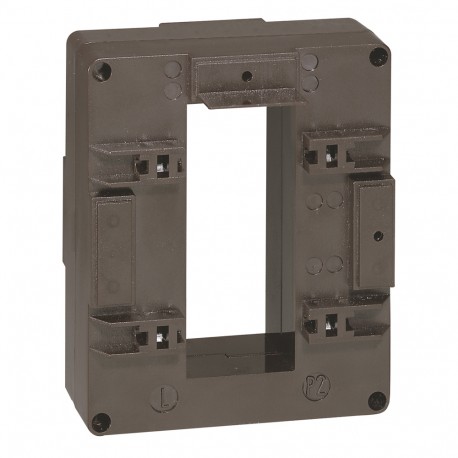

LEGRAND 412149 412149 LEGRAND TRANSF INTENSITY MONO 3200/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412149 LEGRAND TRANSF INTENSITY MONO 3200/5A

412149

412149

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 3200/5A Single phase current transformer (CT) for 127 x 38 mm bar - transformation ratio 3200/5 Closed Core Current Transformer 3200/5 - 25VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for heavy-duty electrical architectures, the Legrand 412149 single-phase current converter scales massive electrical loads down to manageable levels for connected measurement devices. Facilities utilize these units in main switchboards to ensure reliable monitoring of high-amperage feeds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 3200 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 25 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 25 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.21
  • Weight (g)1 095.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 127 x 38 mm bar
  • Transformation ratio : 3200/5
  • Output : 25 VA
General characteristics
Current transformers (CT)
