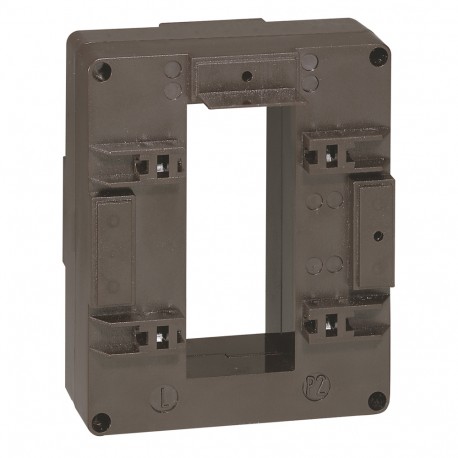

LEGRAND 412147 412147 LEGRAND TRANSF INTENSITY MONO 2000/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412147 LEGRAND TRANSF INTENSITY MONO 2000/5A

412147

412147

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 2000/5A Legrand Single Phase Solid Core Current Transformer 2000/5 15VA Closed Core Current Transformer 2000/5 - 15.0VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 412147 functions as a single-phase current converter built to monitor high electrical currents by stepping them down for meters and protection circuits. It is widely applied in industrial power management and distribution infrastructures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 2000 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 15 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 15 W
  • Number of primary inputs (EF006947): 1

More info

▲
Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A Can be fixed on plate, EN 60715 4 rail
ModelSingle-phase current converter
Rated primary current2000 A
Rated secondary current5 A
Rated secondary apparent power15 VA
Power consumption15 W
Accuracy class0.5
Overcurrent limiting factorFS 5
CalibratedYes
With contact protectionYes
With copper railNo
Secondary connectionScrew connection
Number of primary inputs1
