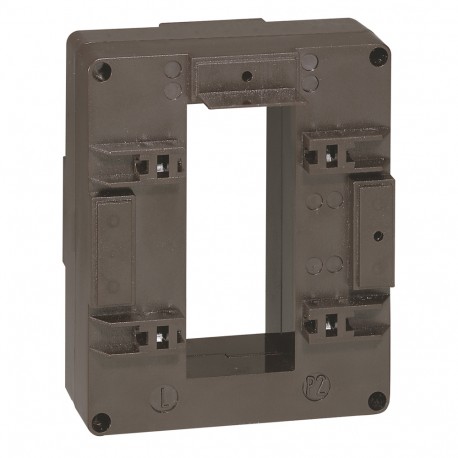

LEGRAND 412138 412138 LEGRAND TRANSF INTENSITY MONO 800/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412138 LEGRAND TRANSF INTENSITY MONO 800/5A

412138

412138

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 800/5A Legrand Single Phase Solid Core Current Transformer 800/5 12VA Closed Core Current Transformer 800/5 - 12.0VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 412138 is a single-phase current converter built to scale high primary line currents down to standard secondary outputs for metering and instrumentation. Current transformers safely isolate control circuits from high-voltage paths while supplying accurate proportional signals to monitoring equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 800 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Rated secondary apparent power (EF007470): 12 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 12 W
  • Number of primary inputs (EF006947): 1

More info

▲
Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A Can be fixed on plate, EN 60715 4 rail
ModelSingle-phase current converter
Rated primary current800 A
Rated secondary current5 A
Rated secondary apparent power12 VA
Power consumption12 W
Accuracy class0.5
Overcurrent limiting factorFS 5
CalibratedYes
With contact protectionYes
With copper railNo
Secondary connectionScrew connection
Number of primary inputs1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
