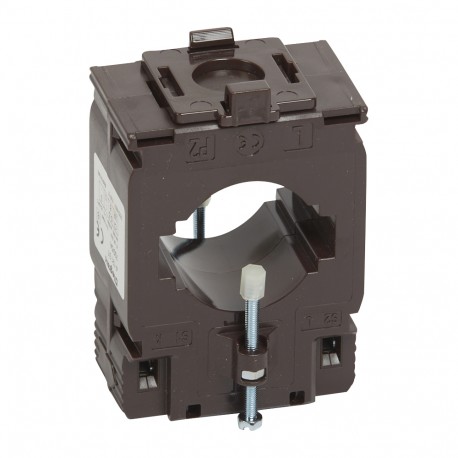

LEGRAND 412131 412131 LEGRAND TRANSF INTENSITY MONO 700/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412131 LEGRAND TRANSF INTENSITY MONO 700/5A

412131

412131

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 700/5A Single phase current transformer (CT) for 50.5x12.5 / 40.5x20.5 mm bar - transformation ratio 700/5 Closed Core Current Transformer 700/5 - 8.0VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A single-phase current converter, part of the Legrand 412131 range, steps down high primary currents to a safe, proportional secondary level suitable for metering and protection devices in electrical switchboards. These transformers are widely utilized in industrial and commercial power distribution networks to monitor electrical consumption and safeguard sensitive equipment. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 700 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Height opening (EF012757): 40 mm
  • Opening diameter (EF005153): 40 mm
  • Width opening (EF012758): 40 mm
  • Rated secondary apparent power (EF007470): 8 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 8 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.655
  • Weight (g)362.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 50,5 x 12,5 and 40,5 x 20,5 mm bars or Ø40 mm cable
  • Transformation ratio : 700/5
  • Output : 8 VA
General characteristics
Current transformers (CT)
