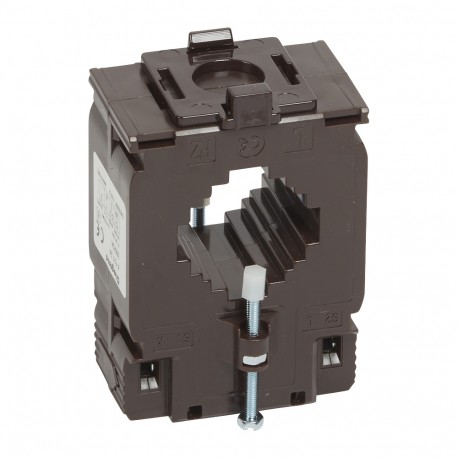

412124 LEGRAND TRANSF INTENSITY MONO-300/5A
412124
412124
LEGRAND
1 Pcs.
TRANSF INTENSITY MONO-300/5A
Single phase current transformer (CT) for 40.5x12.5 / 32.5x20.5 mm bar - transformation ratio 300/5
Closed Core Current Transformer 300/5 - 5.0VA
Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
412124 manufactured by Legrand is a single-phase current converter applied in electrical installations to supply scaled secondary currents to measuring devices.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Rated primary current (EF007405): 300 A
- Secondary connection (EF021093): Screw connection
- Model (EF000010): Single-phase current converter
- Calibrated (EF008836): Yes
- Overcurrent limiting factor (EF007511): FS 5
- Accuracy class (EF008842): 0.5
- With copper rail (EF007380): No
- Height opening (EF012757): 32 mm
- Opening diameter (EF005153): 32 mm
- Width opening (EF012758): 32 mm
- Rated secondary apparent power (EF007470): 5 VA
- With contact protection (EF008186): Yes
- Rated secondary current (EF007471): 5 A
- Power consumption (EF000346): 5 W
- Number of primary inputs (EF006947): 1
More info
▲- Pack (number of units)1
- Volume (dm3)0.693
- Weight (g)384.00
Product characteristics
Single-phase solid core current transformers- Used with ammeters, electricity meters or multi-function measuring units
- Current at the secondary: 5 A
- Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
- Secondary connected by terminals or lugs
- Precision class: 1 %
- Transformation ratio : 300/5
- Output : 5 VA
General characteristics
Current transformers (CT)
