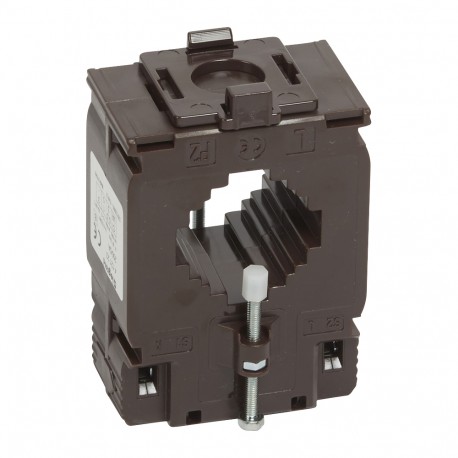

LEGRAND 412123 412123 LEGRAND TRANSF INTENSITY MONO 250/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412123 LEGRAND TRANSF INTENSITY MONO 250/5A

412123

412123

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 250/5A Single phase current transformer (CT) for 40.5x12.5 / 32.5x20.5 mm bar - transformation ratio 250/5 Closed Core Current Transformer 250/5 - 3.0VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 412123 single-phase current converter is designed to scale down electrical line currents for accurate consumption monitoring and safety relay operations in control panels. These units are standard additions to industrial power distribution systems requiring reliable secondary measurement signals.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 250 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Height opening (EF012757): 32 mm
  • Opening diameter (EF005153): 32 mm
  • Width opening (EF012758): 32 mm
  • Rated secondary apparent power (EF007470): 3 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 3 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.764
  • Weight (g)384.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 40,5 x 10,5, 32,5 x 20,5 and 25,5 x 25,5 mm bars or Ø32 mm cable
  • Transformation ratio : 250/5
  • Output : 3 VA
General characteristics
Current transformers (CT)
