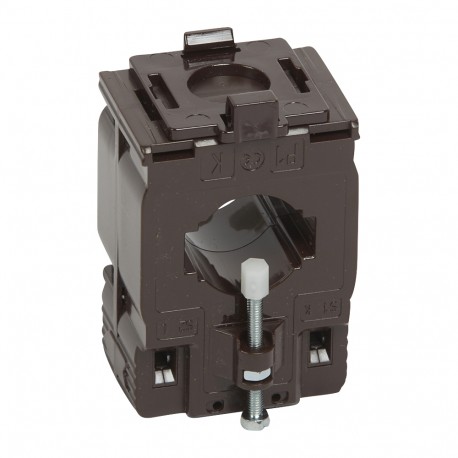

LEGRAND 412114 412114 LEGRAND TRANSF INTENSITY MONO-600/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412114 LEGRAND TRANSF INTENSITY MONO-600/5A

412114

412114

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO-600/5A Single phase current transformer (CT) for 32x10.5 / 25.5x15.5 mm bar - transformation ratio 600/5 Closed Core Current Transformer 600/5 - 12VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Single-phase current converter from Legrand, part number 412114, applied in electrical installations to supply reduced, proportional currents to measurement and control devices.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 600 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Height opening (EF012757): 27 mm
  • Opening diameter (EF005153): 27 mm
  • Width opening (EF012758): 27 mm
  • Rated secondary apparent power (EF007470): 15 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 15 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.47
  • Weight (g)346.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 32,5 x 10,5 and 25,5 x 15,5 mm bars or Ø27 mm cable
  • Transformation ratio : 600/5
  • Output : 12 VA
General characteristics
Current transformers (CT)
