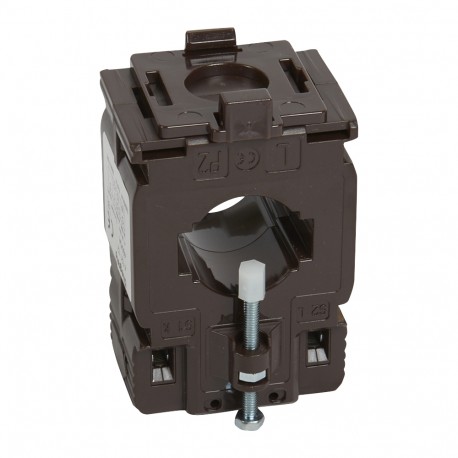

LEGRAND 412112 412112 LEGRAND TRANSF INTENSITY MONO-400/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412112 LEGRAND TRANSF INTENSITY MONO-400/5A

412112

412112

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO-400/5A Single phase current transformer (CT) for 32x10.5 / 25.5x15.5 mm bar - transformation ratio 400/5 Closed Core Current Transformer 400/5 - 10VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part 412112 is a single-phase current converter utilized in electrical distribution systems to step down high line currents for measurement and control equipment. Current transformers safeguard delicate monitoring instruments by isolating them from high-voltage primary circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 400 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Height opening (EF012757): 27 mm
  • Opening diameter (EF005153): 27 mm
  • Width opening (EF012758): 27 mm
  • Rated secondary apparent power (EF007470): 10 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 10 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.451
  • Weight (g)322.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 32,5 x 10,5 and 25,5 x 15,5 mm bars or Ø27 mm cable
  • Transformation ratio : 400/5
  • Output : 10 VA
General characteristics
Current transformers (CT)
