View larger
Images are for illustrative purposes only. Please refer to data sheet for details

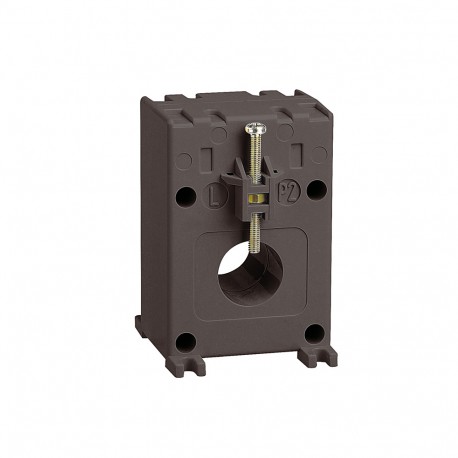

412106 LEGRAND TRANSF INTENSITY MONO 200/5A
412106
412106
LEGRAND
1 Pcs.
TRANSF INTENSITY MONO 200/5A
Legrand Single Phase Solid Core Current Transformer 200/5 4VA
Closed Core Current Transformer 200/5 - 4.0VA
Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Used with ammeters, electricity meters or multi-function measuring units Current at the secondary: 5 A Can be fixed on plate, EN 60715 4 rail
| Model | Single-phase current converter |
|---|---|
| Rated primary current | 200 A |
| Rated secondary current | 5 A |
| Rated secondary apparent power | 4 VA |
| Power consumption | 4 W |
| Accuracy class | 0.5 |
| Overcurrent limiting factor | FS 5 |
| Calibrated | Yes |
| With contact protection | Yes |
|---|---|
| Height opening | 21-21 mm |
| Width opening | 21-21 mm |
| Opening diameter | 21 mm |
| With copper rail | No |
| Secondary connection | Screw connection |
| Number of primary inputs | 1 |
| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 200 A |
| Secondary connection (EF021093) | Screw connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Accuracy class (EF008842) | 0.5 |
| With copper rail (EF007380) | No |
| Height opening (EF012757) | 21 mm |
| Opening diameter (EF005153) | 21 mm |
| Width opening (EF012758) | 21 mm |
| Rated secondary apparent power (EF007470) | 4 VA |
| With contact protection (EF008186) | Yes |
| Rated secondary current (EF007471) | 5 A |
| Power consumption (EF000346) | 4 W |
| Number of primary inputs (EF006947) | 1 |
