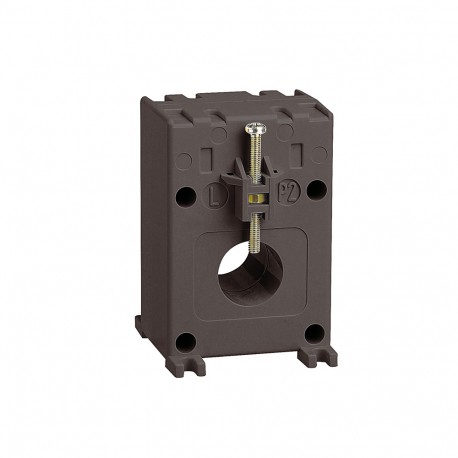

LEGRAND 412104 412104 LEGRAND TRANSF INTENSITY MONO 125/5A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412104 LEGRAND TRANSF INTENSITY MONO 125/5A

412104

412104

LEGRAND

1 Pcs.

TRANSF INTENSITY MONO 125/5A Single phase current transformer (CT) for 16x12.5 mm bar - transformation ratio 125/5 Closed Core Current Transformer 125/5 - 2.5VA

Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand 412104 single-phase current converter is an essential monitoring accessory used in electrical installations to step down primary AC currents for connection to measuring instruments and protective equipment. Units of this category ensure sensitive monitoring devices can safely analyze high-load electrical lines.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated primary current (EF007405): 125 A
  • Secondary connection (EF021093): Screw connection
  • Model (EF000010): Single-phase current converter
  • Calibrated (EF008836): Yes
  • Overcurrent limiting factor (EF007511): FS 5
  • Accuracy class (EF008842): 0.5
  • With copper rail (EF007380): No
  • Height opening (EF012757): 21 mm
  • Opening diameter (EF005153): 21 mm
  • Width opening (EF012758): 21 mm
  • Rated secondary apparent power (EF007470): 2 VA
  • With contact protection (EF008186): Yes
  • Rated secondary current (EF007471): 5 A
  • Power consumption (EF000346): 2 W
  • Number of primary inputs (EF006947): 1

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.257
  • Weight (g)175.00
Product characteristics
Single-phase solid core current transformers
  • Used with ammeters, electricity meters or multi-function measuring units
  • Current at the secondary: 5 A
  • Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
  • Secondary connected by terminals or lugs
  • Precision class: 1 %
For 16 x 12,5 mm bar or Ø21 mm cable
  • Transformation ratio : 125/5
  • Output : 2 VA
  • 5 :
General characteristics
Current transformers (CT)
