View larger
Images are for illustrative purposes only. Please refer to data sheet for details

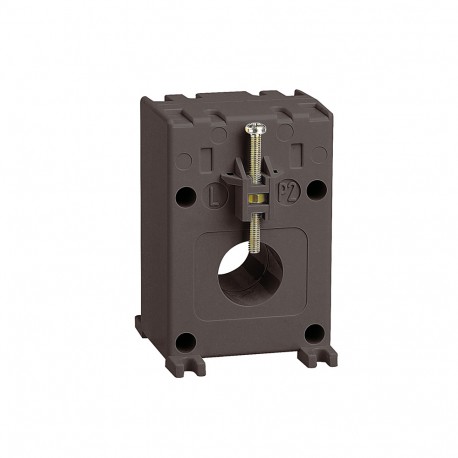

412102 LEGRAND TRANSF INTENSITY MONO 75/5A
412102
412102
LEGRAND
1 Pcs.
TRANSF INTENSITY MONO 75/5A
Single phase current transformer (CT) for 16x12.5 mm bar - transformation ratio 75/5
Closed Core Current Transformer 75/5 - 1.5VA
Automation > Current transformer
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.233
- Weight (g)191.00
Product characteristics
Single-phase solid core current transformers- Used with ammeters, electricity meters or multi-function measuring units
- Current at the secondary: 5 A
- Can be fixed on plate, EN 60715 rail Cat.No 4 121 01/02/03/04/05/06/07, or bars
- Secondary connected by terminals or lugs
- Precision class: 1 %
- Transformation ratio : 75/5
- Output : 1 VA
- 5 :
General characteristics
Current transformers (CT)| Feature Name | Feature Value |
|---|---|
| Rated primary current (EF007405) | 75 A |
| Secondary connection (EF021093) | Screw connection |
| Model (EF000010) | Single-phase current converter |
| Calibrated (EF008836) | Yes |
| Overcurrent limiting factor (EF007511) | FS 5 |
| Accuracy class (EF008842) | 1 |
| With copper rail (EF007380) | No |
| Height opening (EF012757) | 21 mm |
| Opening diameter (EF005153) | 21 mm |
| Width opening (EF012758) | 21 mm |
| Rated secondary apparent power (EF007470) | 1.5 VA |
| With contact protection (EF008186) | Yes |
| Rated secondary current (EF007471) | 5 A |
| Power consumption (EF000346) | 1.5 W |
| Number of primary inputs (EF006947) | 1 |
