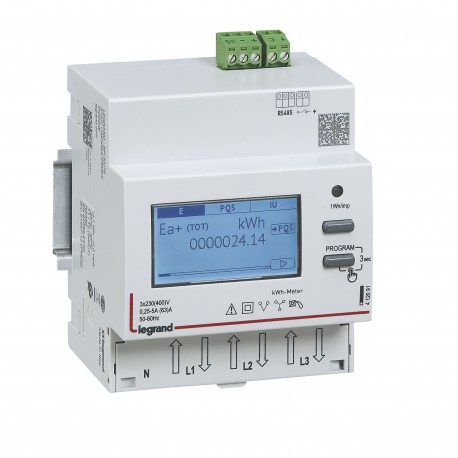

LEGRAND 412093 412093 LEGRAND EMDX3 METER TRI 63A MID View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412093 LEGRAND EMDX3 METER TRI 63A MID

412093

412093

LEGRAND

1 Pcs.

EMDX3 METER TRI 63A MID EMDX³ 63A Energy Meter Three Phase Direct Connection RS 485 Output MID Compliant Three-phase energy meter EMDX³ - MID - direct connection 63A - 4mod

Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 412093 LEGRAND EMDX3 METER TRI 63A MID is a three-phase energy meter utilized in electrical distribution boards to monitor active and reactive power consumption. Devices of this type are commonly installed in commercial and industrial sub-metering applications to track usage trends and support energy management initiatives. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Measurement type load profile: No
  • Height: 92.4 mm
  • Number of positions total (counter): 9
  • With lock code: Yes
  • Degree of protection (IP): IP54
  • Energy type: Effective power and reactive power
  • Accuracy class: B
  • Mounting method: DRA (DIN-rail adapter)
  • Pole type: Three conductor/four conductor
  • Tariff type: Two-tariff
  • Approval: Measuring Instruments Directive
  • Frequency: 49 Hz
  • Max. current (Imax): 63 A
  • Tariff control: External
  • Suitable for: Purchase/supply
  • Escapement mechanism: Yes

More info

▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
Type of meterElectronic
Nominal current (In)5 A
Max. current (Imax)63 A
Nominal voltage (Un) N-L197-265 V
Nominal voltage (Un) L-L340-460 V
Frequency49-61 Hz
Accuracy classB
Pole typeThree conductor/four conductor
ModelDirect measurement
Energy typeEffective power and reactive power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profileNo
Escapement mechanismYes
CalibratedYes
ApprovalMeasuring Instruments Directive
Pulse outputNone
Type of indicationDigital
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings4
Width71.2 mm
Depth66 mm
Height92.4 mm
Type of interfaceRS-485
With lock codeYes
Number of positions total (counter)9
Degree of protection (IP)IP54
Operating / setting temperature-25-55 °C
Storage temperature-25-70 °C
Voltage typeAC
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
PrewiredNo
Connection typeScrewed terminal
Terminals capacity1-16 mm²
Label space/information surfaceNo
Connected objectNo
