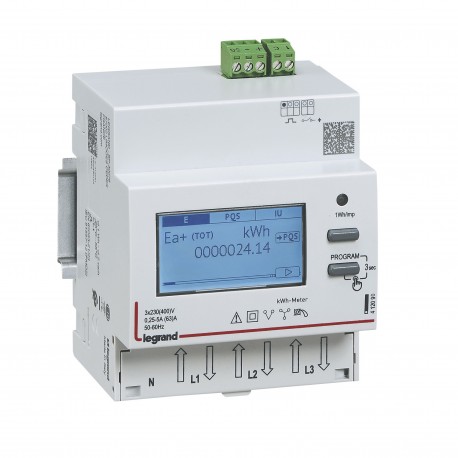

412092 LEGRAND EMDX3 METER TRI 63A MID
412092
412092
LEGRAND
1 Pcs.
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 412092 LEGRAND EMDX3 METER TRI 63A MID is a three-phase energy meter utilized in commercial and industrial electrical distribution systems to monitor active and reactive power consumption. These meters are commonly integrated into switchboards and sub-distribution panels for accurate energy accounting, cost allocation, and load profiling.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Measurement type load profile (EF008844): No
- Height (EF000040): 92.4 mm
- Number of positions total (counter) (EF004442): 9
- With lock code (EF008846): Yes
- Degree of protection (IP) (EF005474): IP54
- Energy type (EF007135): Effective power and reactive power
- Pulse rate (EF008840): 0.001 Imp/kWh (kvarh)
- Accuracy class (EF008842): B
- Mounting method (EF000003): DRA (DIN-rail adapter)
- Pole type (EF008843): Three conductor/four conductor
- Tariff type (EF007550): Two-tariff
- Approval (EF008837): Measuring Instruments Directive
- Frequency (EF000416): 49 Hz
- Pulse output (EF008838): Optic
- Max. current (Imax) (EF000877): 63 A
- Pulse type (EF008839): S0
More info
▲| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 63 A |
| Nominal voltage (Un) N-L | 197-265 V |
| Nominal voltage (Un) L-L | 340-460 V |
| Frequency | 49-61 Hz |
| Accuracy class | B |
| Pole type | Three conductor/four conductor |
| Model | Direct measurement |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | Optical |
| Pulse type | S0 |
| Pulse rate | 0.001-10 Imp/kWh (kvarh) |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
|---|---|
| Width in number of modular spacings | 4 |
| Width | 71.2 mm |
| Depth | 66 mm |
| Height | 92.4 mm |
| Type of interface | None |
| With lock code | Yes |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -25-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-16 mm² |
| Label space/information surface | No |
| Connected object | No |
