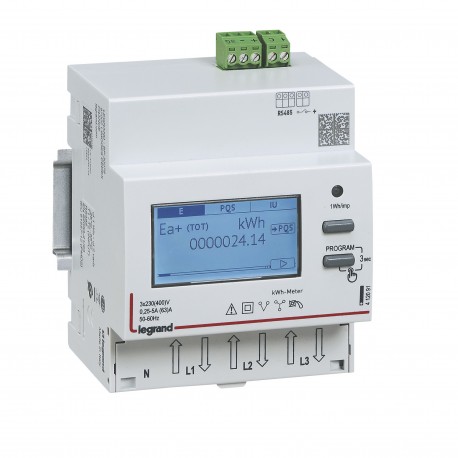

LEGRAND 412091 412091 LEGRAND EMDX3 METER TRI 63A

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

412091 LEGRAND EMDX3 METER TRI 63A

Name: 412091 LEGRAND EMDX3 METER TRI 63A
Brand: LEGRAND
SKU: 412091

Reference: 412091

Code: 412091

Manufacturer: LEGRAND

Units per package: 1 Pcs.

Description:

EMDX3 METER TRI 63A EMDX³ 63A Energy Meter Three Phase Direct Connection RS 485 Output Non-MID Three-phase energy meter EMDX³ - non-MID - direct connection 63A - 4mod

Categories:
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for installation in electrical enclosures, the Legrand 412091 energy meters provide precise tracking of active and reactive power consumption in three-phase commercial and domestic environments. These devices assist facility managers in monitoring usage trends, allocating power costs, and ensuring regulatory compliance across distribution lines.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

Measurement type load profile (EF008844): No
Height (EF000040): 92.4 mm
Number of positions total (counter) (EF004442): 9
With lock code (EF008846): Yes
Degree of protection (IP) (EF005474): IP54
Energy type (EF007135): Effective power and reactive power
Accuracy class (EF008842): B
Mounting method (EF000003): DRA (DIN-rail adapter)
Pole type (EF008843): Three conductor/four conductor
Tariff type (EF007550): Two-tariff
Approval (EF008837): Domestic
Frequency (EF000416): 47 Hz
Max. current (Imax) (EF000877): 63 A
Tariff control (EF008834): External
Suitable for (EF000073): Purchase/supply
Escapement mechanism (EF008835): Yes

More info

▲

Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used

Type of meter	Electronic
Nominal current (In)	5 A
Max. current (Imax)	63 A
Nominal voltage (Un) N-L	197-265 V
Nominal voltage (Un) L-L	340-460 V
Frequency	47-63 Hz
Accuracy class	B
Pole type	Three conductor/four conductor
Model	Direct measurement
Energy type	Effective power and reactive power
Suitable for	Purchase/supply
Tariff type	Two-tariff
Tariff control	External
Measurement type load profile	No
Escapement mechanism	Yes
Calibrated	Yes
Approval	Domestic
Pulse output	None
Type of indication	Digital
Mounting method	DRA (DIN-rail adaptor)

Width in number of modular spacings	4
Width	71.2 mm
Depth	66 mm
Height	92.4 mm
Type of interface	RS-485
With lock code	Yes
Number of positions total (counter)	9
Degree of protection (IP)	IP54
Operating / setting temperature	-25-55 °C
Storage temperature	-25-70 °C
Voltage type	AC
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Prewired	No
Connection type	Screwed terminal
Terminals capacity	1-16 mm²
Label space/information surface	No
Connected object	No
