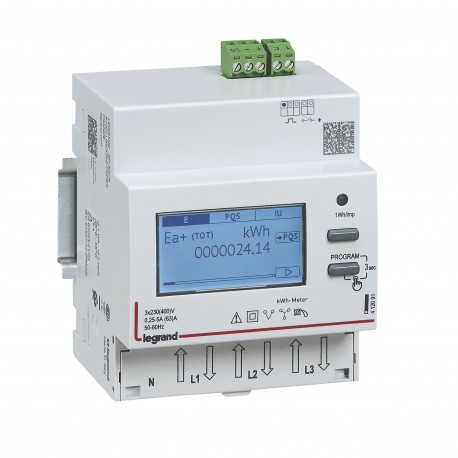

EMDX3 METER TRI 63A EMDX³ 63A Energy Meter Three Phase Direct Connection Pulse Output Non-MID Three-phase energy meter EMDX³ - non-MID - direct connection 63A - 4mod

Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 412090 LEGRAND EMDX3 METER TRI 63A is a three-phase energy meter designed to measure active and reactive electrical energy in commercial and light industrial distribution systems. Such meters are routinely mounted on DIN rails within switchboards to provide accurate consumption data for internal facility management. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Measurement type load profile: No
  • Height: 92.4 mm
  • Number of positions total (counter): 9
  • With lock code: Yes
  • Degree of protection (IP): IP54
  • Energy type: Effective power and reactive power
  • Pulse rate: 0.001 Imp/kWh (kvarh)
  • Accuracy class: B
  • Mounting method: DRA (DIN-rail adapter)
  • Pole type: Three conductor/four conductor
  • Tariff type: Two-tariff
  • Approval: Domestic
  • Frequency: 47 Hz
  • Pulse output: Optic
  • Max. current (Imax): 63 A
  • Pulse type: S0

More info

▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
Type of meterElectronic
Nominal current (In)5 A
Max. current (Imax)63 A
Nominal voltage (Un) N-L197-265 V
Nominal voltage (Un) L-L340-460 V
Frequency47-63 Hz
Accuracy classB
Pole typeThree conductor/four conductor
ModelDirect measurement
Energy typeEffective power and reactive power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profileNo
Escapement mechanismYes
CalibratedYes
ApprovalDomestic
Pulse outputOptical
Pulse typeS0
Pulse rate0.001-10 Imp/kWh (kvarh)
Type of indicationDigital
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings4
Width71.2 mm
Depth66 mm
Height92.4 mm
Type of interfaceNone
With lock codeYes
Number of positions total (counter)9
Degree of protection (IP)IP54
Operating / setting temperature-25-55 °C
Storage temperature-25-70 °C
Voltage typeAC
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
PrewiredNo
Connection typeScrewed terminal
Terminals capacity1-16 mm²
Label space/information surfaceNo
Connected objectNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
