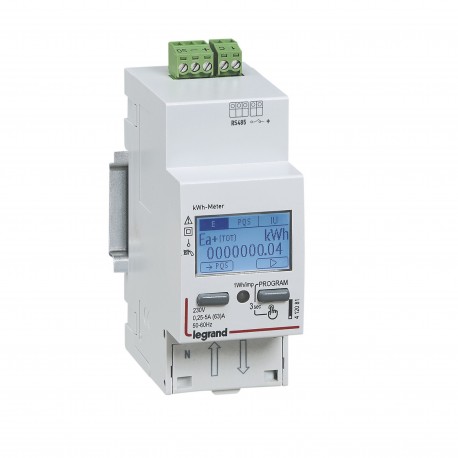

412083 LEGRAND EMDX3 METER MONO 63A MID
412083
412083
LEGRAND
1 Pcs.
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
EMDX3 meter part number 412083 from Legrand is a single-phase electronic monitoring device built for DIN rail mounting in electrical distribution panels. Panel meters of this type are routinely utilized to track power consumption and electrical parameters in commercial and industrial sub-distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Measurement type load profile (EF008844): No
- Height (EF000040): 92.4 mm
- Number of positions total (counter) (EF004442): 9
- With lock code (EF008846): Yes
- Degree of protection (IP) (EF005474): IP54
- Energy type (EF007135): Effective power and reactive power
- Accuracy class (EF008842): B
- Mounting method (EF000003): DRA (DIN-rail adapter)
- Pole type (EF008843): Single phase
- Tariff type (EF007550): Two-tariff
- Approval (EF008837): Measuring Instruments Directive
- Frequency (EF000416): 49 Hz
- Max. current (Imax) (EF000877): 63 A
- Tariff control (EF008834): External
- Suitable for (EF000073): Purchase/supply
- Escapement mechanism (EF008835): Yes
More info
▲| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 10 A |
| Max. current (Imax) | 63 A |
| Nominal voltage (Un) N-L | 197-265 V |
| Frequency | 49-61 Hz |
| Accuracy class | B |
| Pole type | Single phase |
| Model | Direct measurement |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | None |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 2 |
| Width | 35.8 mm |
|---|---|
| Depth | 66 mm |
| Height | 92.4 mm |
| Type of interface | RS-485 |
| With lock code | Yes |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -25-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-16 mm² |
| Label space/information surface | No |
| Connected object | No |
