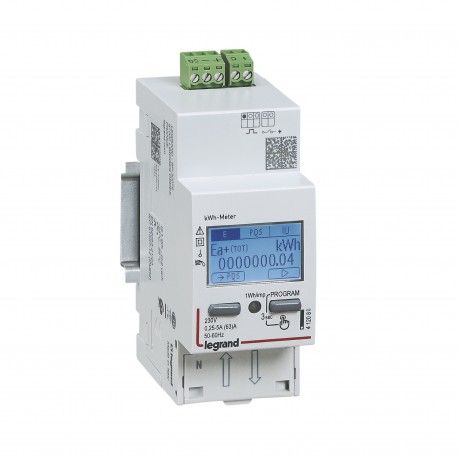

LEGRAND 412080 412080 LEGRAND EMDX3 METER MONO 63RD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412080 LEGRAND EMDX3 METER MONO 63RD

412080

412080

LEGRAND

1 Pcs.

EMDX3 METER MONO 63RD EMDX³ 63A Energy Meter Single Phase Direct Connection Pulse Output Non-MID EMDX³ single-phase energy meter - non-MID - direct connection 63A - 2mod

Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Legrand EMDX3 meter mono 63rd provides robust single-phase electrical measurement capabilities, housed in a durable enclosure suited for demanding installation environments. Panel builders and contractors rely on these meters to accurately capture effective and reactive power consumption data across sub-distribution circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Measurement type load profile (EF008844): No
  • Height (EF000040): 92.4 mm
  • Number of positions total (counter) (EF004442): 9
  • With lock code (EF008846): Yes
  • Degree of protection (IP) (EF005474): IP54
  • Energy type (EF007135): Effective power and reactive power
  • Pulse rate (EF008840): 0.001 Imp/kWh (kvarh)
  • Accuracy class (EF008842): B
  • Mounting method (EF000003): DRA (DIN-rail adapter)
  • Pole type (EF008843): Single phase
  • Tariff type (EF007550): Two-tariff
  • Approval (EF008837): Domestic
  • Frequency (EF000416): 47 Hz
  • Pulse output (EF008838): Optic
  • Max. current (Imax) (EF000877): 63 A
  • Pulse type (EF008839): S0

More info

▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
Type of meterElectronic
Nominal current (In)10 A
Max. current (Imax)63 A
Nominal voltage (Un) N-L197-265 V
Frequency47-63 Hz
Accuracy classB
Pole typeSingle phase
ModelDirect measurement
Energy typeEffective power and reactive power
Suitable forPurchase/supply
Tariff typeTwo-tariff
Tariff controlExternal
Measurement type load profileNo
Escapement mechanismYes
CalibratedYes
ApprovalDomestic
Pulse outputOptical
Pulse typeS0
Pulse rate0.001-10 Imp/kWh (kvarh)
Type of indicationDigital
Mounting methodDRA (DIN-rail adaptor)
Width in number of modular spacings2
Width35.8 mm
Depth66 mm
Height92.4 mm
Type of interfaceNone
With lock codeYes
Number of positions total (counter)9
Degree of protection (IP)IP54
Operating / setting temperature-25-55 °C
Storage temperature-25-70 °C
Voltage typeAC
Terminal marking indicationYes
ColourGrey
RAL-number7035
Halogen freeYes
PrewiredNo
Connection typeScrewed terminal
Terminals capacity1-16 mm²
Label space/information surfaceNo
Connected objectNo
