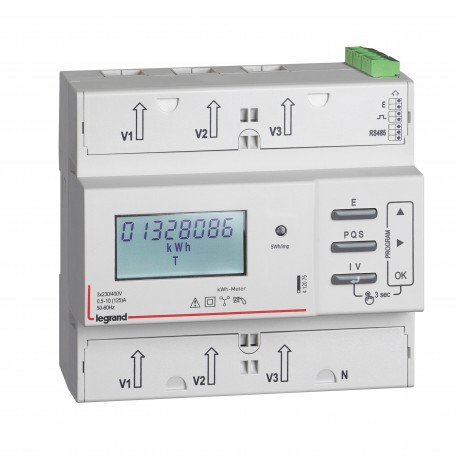

412075 LEGRAND EMDX3 METER TRIF MID 125

412075

412075

LEGRAND

1 Pcs.

EMDX3 METER TRIF MID 125 Three-phase meter EMDX³ with direct connection - MID compliant - 125 A - RS485 and pulse outputs - 6 modules EMDX³ - MID - direct connection 125A - 6mod three-phase energy meter

Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.287
  • Weight (g)612.00
Product characteristics
Three-phase meters
Direct connection
  • MID compliant :
  • Maximum current : 125 A
  • Output type : Pulse and RS 485
  • Dual tariff : Yes
  • Number of modules : 6
General characteristics
EMDX³ electrical energy meters - rail mounting
  • Measure the electricity consumed by a single-phase or three-phase circuit downstream of the electricity distribution metering
  • Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number)
  • Conform to standards IEC 61557-12, IEC 62053-21/23, IEC 62052-11 and IEC 62052-31
  • MID compliance ensures accuracy of the metering with a view to recharging for the electricity used

ETIM for 412075 Meters (EC001506)
Feature Name Feature Value
Measurement type load profile (EF008844) No
Height (EF000040) 111.5 mm
Number of positions total (counter) (EF004442) 8
EEC40 signature (EF008845) No
With lock code (EF008846) Yes
Degree of protection (IP) (EF005474) IP54
Energy type (EF007135) Effective power and reactive power
Pulse rate (EF008840) 0.001 Imp/kWh (kvarh)
Accuracy class (EF008842) B
Mounting method (EF000003) DRA (DIN-rail adapter)
Pole type (EF008843) Four conductor
Tariff type (EF007550) Two-tariff
Approval (EF008837) Measuring Instruments Directive
Frequency (EF000416) 47 Hz
Pulse output (EF008838) Optic
Max. current (Imax) (EF000877) 125 A
Pulse type (EF008839) S0
Tariff control (EF008834) External
Suitable for (EF000073) Purchase
Escapement mechanism (EF008835) Yes
Model (EF000010) Direct measurement
Calibrated (EF008836) Yes
Type of meter (EF005441) Electronic
Type of interface (EF006977) RS-485
Nominal current (In) (EF008873) 20 A
Width in number of modular spacings (EF002950) 6
Nominal voltage (Un) N-L (EF008871) 197 V
Nominal voltage (Un) L-L (EF008872) 340 V
Depth (EF000049) 65.6 mm
Type of indication (EF000306) Digital
Width (EF000008) 107.2 mm
