View larger
Images are for illustrative purposes only. Please refer to data sheet for details

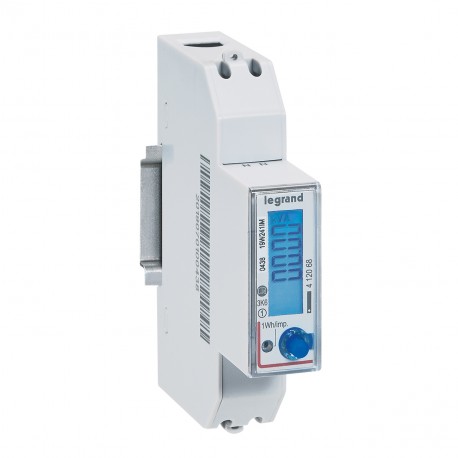

412068 LEGRAND EMDX3 METER SINGLE PHASE 45A
412068
412068
LEGRAND
1 Pcs.
EMDX3 METER SINGLE PHASE 45A
EMDX³ 45A Energy Meter Single Phase Direct Connection RS 485 Output Non-MID
EMDX³ single-phase energy meter - non-MID - direct connection 45A - 1mod
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 45 A |
| Nominal voltage (Un) N-L | 196-264 V |
| Frequency | 47-63 Hz |
| Pole type | Single phase |
| Model | Direct measurement |
| Energy type | Effective power |
| Suitable for | Purchase |
| Tariff type | One-tariff |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
|---|---|
| Approval | Domestic |
| Pulse output | None |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 1 |
| Type of interface | RS-485 |
| EEC40 signature | No |
| With lock code | No |
| Number of positions total (counter) | 6 |
| Degree of protection (IP) | IP20 |
| Feature Name | Feature Value |
|---|---|
| Measurement type load profile (EF008844) | No |
| Number of positions total (counter) (EF004442) | 6 |
| EEC40 signature (EF008845) | No |
| With lock code (EF008846) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Energy type (EF007135) | Effective power |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Pole type (EF008843) | Single phase |
| Tariff type (EF007550) | One-tariff |
| Approval (EF008837) | Domestic |
| Frequency (EF000416) | 47 Hz |
| Pulse output (EF008838) | None |
| Max. current (Imax) (EF000877) | 45 A |
| Suitable for (EF000073) | Purchase |
| Escapement mechanism (EF008835) | Yes |
| Model (EF000010) | Direct measurement |
| Calibrated (EF008836) | Yes |
| Type of meter (EF005441) | Electronic |
| Type of interface (EF006977) | RS-485 |
| Nominal current (In) (EF008873) | 5 A |
| Width in number of modular spacings (EF002950) | 1 |
| Nominal voltage (Un) N-L (EF008871) | 196 V |
| Type of indication (EF000306) | Digital |
