View larger
Images are for illustrative purposes only. Please refer to data sheet for details
412053 LEGRAND CENTRAL AS PREMIUM
412053
412053
LEGRAND
1 Pcs.
CENTRAL AS PREMIUM

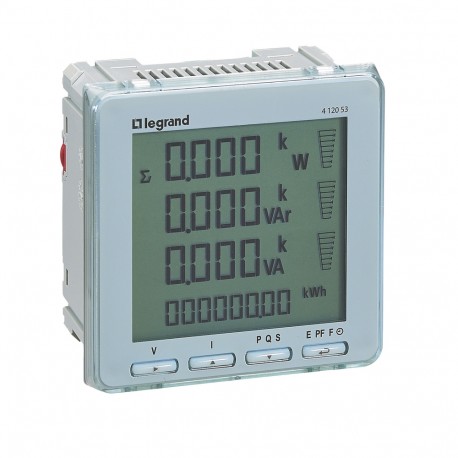

Multifunction measuring unit EMDX³ Premium - door/solid faceplate mounting - 96x96x62 mm
EMDX³ Premium Instrument Instrument - Pulse Output and Modbus RS485
Automation > Multifunction measuring instrument
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Energy efficiency solution
- Pack (number of units)1
- Volume (dm3)1.425
- Weight (g)409.00
Product characteristics
EMDX³ - Premium multi-function measuring unit- For mounting on door or solid faceplate
- Dimensions: 96 x 96 x 62 mm
- LCD display
- Precision class: 0.5
- Measurement of currents, voltages, active, reactive and apparent power, internal temperature and power factor
- Metering:
- Active energy consumed or produced
- Reactive energy consumed or produced
- Operating time
- THD
- Programmable alarms on all functions
- Power quality functions: harmonics (U & I) to 40th, dips, swells, interruption, rapid voltage change and flickers
- Memory embedded (8 Mb)
- RTC (real time clock)
- Can take 4 EMDX3 optional modules
General characteristics
EMDX³ multi-function measuring units - for mounting on door or solid faceplate- Conform to standards:
- IEC 61557-12
- IEC 62053-22
| Feature Name | Feature Value |
|---|---|
| Ampere meter (EF006555) | Yes |
| Pulse counter (EF006559) | No |
| Frequency meter (EF006558) | Yes |
| With rotational speed meter (EF006557) | No |
| Reactive power meter (EF006556) | Yes |
| Effective power measurement device (EF006561) | Yes |
| Voltmeter (EF006560) | Yes |
