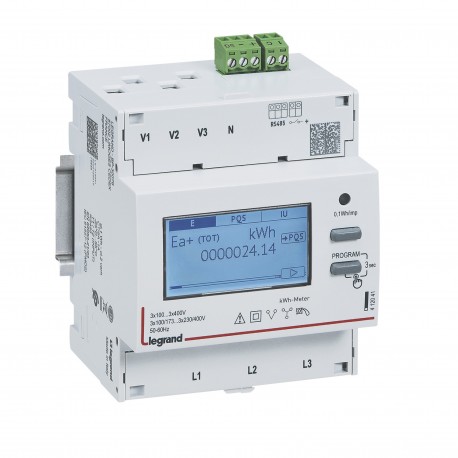

412043 LEGRAND EMDX3 METER TRI P/TI 5A MID
412043
412043
LEGRAND
1 Pcs.
EMDX3 METER TRI P/TI 5A MID
EMDX³ 5A Energy Meter Three Phase Connection with CT RS 485 Output MID Compliant
Three-phase energy meter EMDX³ - MID - TI connection 5A - 4mod
Automation > Kilowatt-hour meter
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Measure the electricity consumed by a single phase or three phase circuit downstream of the electricity distribution metering Display electricity consumption in kWh, as well as other values such as current, active energy, reactive energy and power (depending on the catalogue number) MID compliance ensures accuracy of the metering with a view to recharging for the electricity used
| Type of meter | Electronic |
|---|---|
| Nominal current (In) | 5 A |
| Max. current (Imax) | 6 A |
| Nominal voltage (Un) N-L | 197-265 V |
| Nominal voltage (Un) L-L | 340-460 V |
| Frequency | 49-61 Hz |
| Accuracy class | B |
| Pole type | Three conductor/four conductor |
| Model | Measurement transformer |
| Energy type | Effective power and reactive power |
| Suitable for | Purchase/supply |
| Tariff type | Two-tariff |
| Tariff control | External |
| Measurement type load profile | No |
| Escapement mechanism | Yes |
| Calibrated | Yes |
| Approval | Measuring Instruments Directive |
| Pulse output | None |
| Type of indication | Digital |
| Mounting method | DRA (DIN-rail adaptor) |
| Width in number of modular spacings | 4 |
|---|---|
| Width | 71.2 mm |
| Depth | 66 mm |
| Height | 92.4 mm |
| Type of interface | RS-485 |
| With lock code | Yes |
| Number of positions total (counter) | 9 |
| Degree of protection (IP) | IP54 |
| Operating / setting temperature | -25-55 °C |
| Storage temperature | -25-70 °C |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Colour | Grey |
| RAL-number | 7035 |
| Halogen free | Yes |
| Prewired | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1-16 mm² |
| Label space/information surface | No |
| Connected object | No |
| Feature Name | Feature Value |
|---|---|
| Measurement type load profile (EF008844) | No |
| Height (EF000040) | 92.4 mm |
| Number of positions total (counter) (EF004442) | 9 |
| With lock code (EF008846) | Yes |
| Degree of protection (IP) (EF005474) | IP54 |
| Energy type (EF007135) | Effective power and reactive power |
| Accuracy class (EF008842) | B |
| Mounting method (EF000003) | DRA (DIN-rail adapter) |
| Pole type (EF008843) | Three conductor/four conductor |
| Tariff type (EF007550) | Two-tariff |
| Approval (EF008837) | Measuring Instruments Directive |
| Frequency (EF000416) | 49 Hz |
| Pulse output (EF008838) | None |
| Max. current (Imax) (EF000877) | 6 A |
| Tariff control (EF008834) | External |
| Suitable for (EF000073) | Purchase/supply |
| Escapement mechanism (EF008835) | Yes |
| Model (EF000010) | Measurement transformer |
| Calibrated (EF008836) | Yes |
| Type of meter (EF005441) | Electronic |
| Type of interface (EF006977) | RS-485 |
| Nominal current (In) (EF008873) | 5 A |
| Width in number of modular spacings (EF002950) | 4 |
| Nominal voltage (Un) N-L (EF008871) | 197 V |
| Nominal voltage (Un) L-L (EF008872) | 340 V |
| Depth (EF000049) | 66 mm |
| Type of indication (EF000306) | Digital |
| Width (EF000008) | 71.2 mm |
